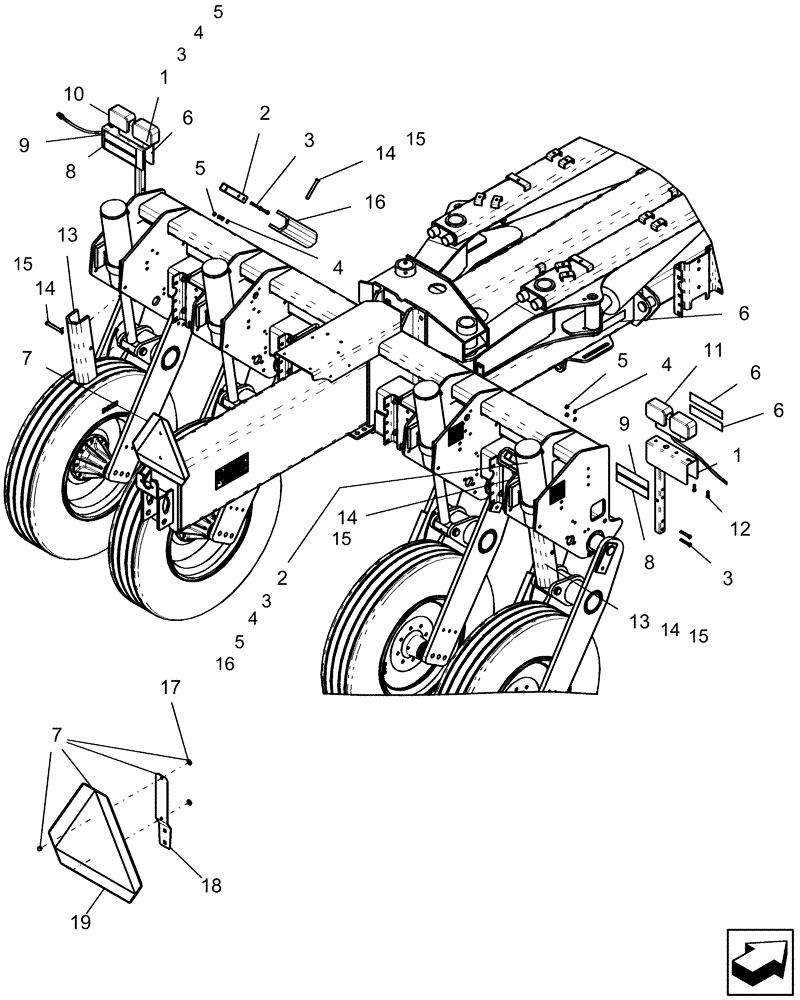

Запчасти Case IH 1250 (90.108.01[02]) - DECALS - LAYOUT LIGHTING AND CYLINDER LOCKS - 24 ROW ASN Y9S007001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87490276

BRACKET

assembly with decals LH

2шт.

1

87490277

BRACKET

assembly with decals RH

2шт.

2

87491435

BRACKET

light

2шт.

3

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

8шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

5

9628503

NUT,3/8"-16, G5

8шт.

6

86547782

REFLECTOR,YELLOW

Retroreflective Amber 1.375" x 7.25"

10шт.

7

311862A1

PLATE

assembly, slow moving vehicle

1шт.

8

86547781

REFLECTOR,RED

Retroreflective Red

2шт.

9

311865A1

REFLECTOR

fluorescent orange

2шт.

10

86404264

LIGHT,12V, 21W, Amber/Red

rear LH

1шт.

11

86404265

LIGHT

rear RH

1шт.

12

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

, Years: -01-DEC-08

4шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Start Year: 01-DEC-08

4шт.

13

87548605

CHANNEL

cylinder lock

2шт.

14

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

4шт.

15

86624096

COTTER PIN,Int, 3/16 x .080"

4шт.

16

87548606

CHANNEL

cylinder lock

2шт.

17

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

18

311861A1

SUPPORT

SMV sign

1шт.

19

86547710

EMBLEM

KIT SMV

1шт.
