Запчасти Case IH 1250 (35.116.12) - HYDRAULICS - CYLINDER 87403328, 5" X 16", DRAWBAR HITCH (35) - HYDRAULIC SYSTEMS

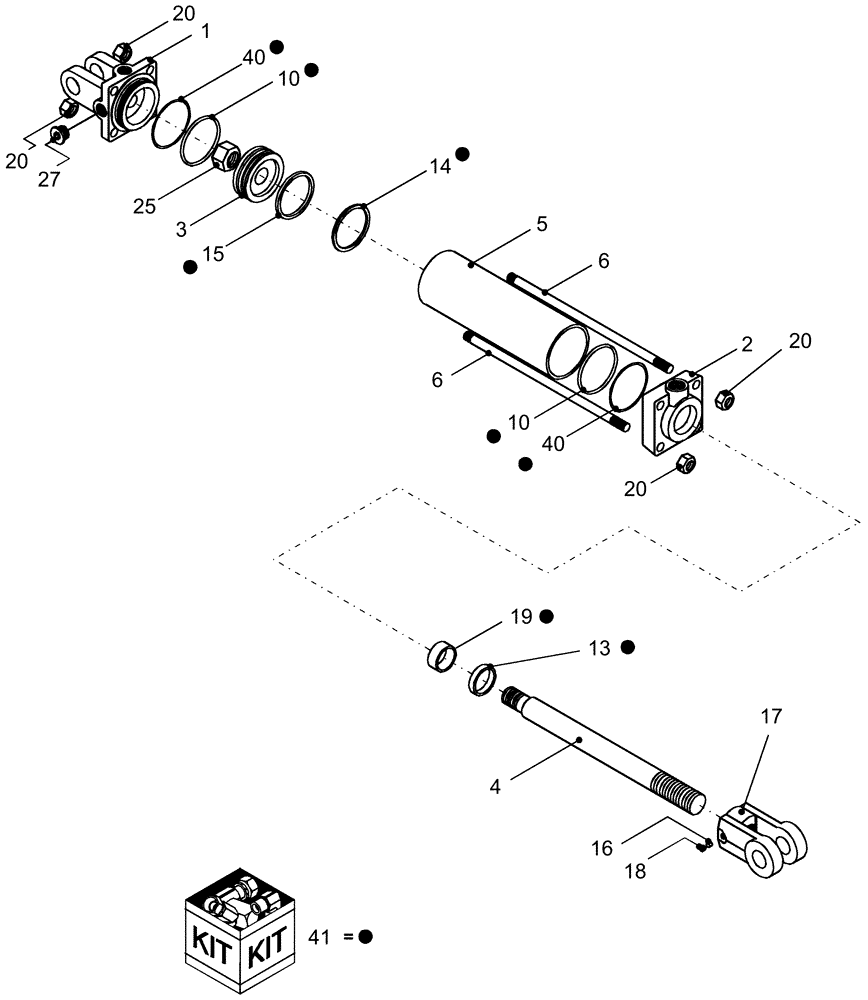

Схема запчастей Case IH 1250 - (35.116.12) - HYDRAULICS - CYLINDER 87403328, 5" X 16", DRAWBAR HITCH (35) - HYDRAULIC SYSTEMS
20
14
17
13
15
18
4
41
27
19
10
5
25
40
1
16
2
3
6
10
40
20
20
6
20

Артикул

Название

Примечание

Количество

0

87403328

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1206.5mm Stroke

5" x 16"

1шт.

1

87409428

HEAD

cylinder base 5" bore; 2, 3/4"-16 orb ports

1шт.

2

87409416

HEAD

cylinder front 5" bore x 2" rod

1шт.

3

87409467

PISTON

cylinder, 5" bore Monarch #494760

1шт.

4

NS

NOT SERVICED

shaft

1шт.

5

NS

NOT SERVICED

tube

1шт.

6

NS

NOT SERVICED

tie rod

4шт.

10

NSS

NOT SOLD SEPARAT

End Cap O-ring

2шт.

Included in repair kit 87403963

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Dust Seal

1шт.

Included in repair kit 87403963

1шт.

15

NSS

NOT SOLD SEPARAT

Piston Wear Ring

2шт.

Included in repair kit 87403963

1шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

17

87409389

CLEVIS,1 -1/2" - 12

cylinder rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

ring wear

1шт.

Included in repair kit 87403963

1шт.

20

80001689

NUT

3/4"-16, G5

8шт.

25

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

End Cap Backup Washers

2шт.

Included in repair kit 87403963

1шт.

41

87403963

SEAL KIT

hyd cylinder 5" Monarch with 2" rod

1шт.

Выбрано товаров: 24
