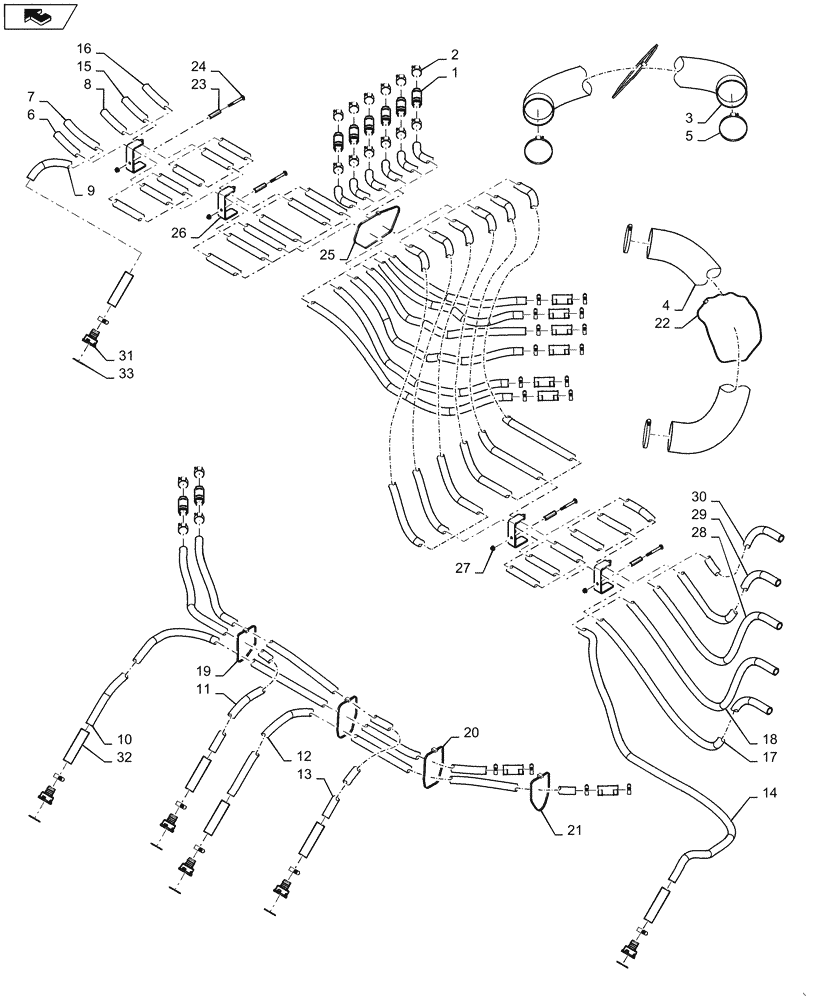

Запчасти Case IH 1250 (80.150.29[04]) - BULK FILL - HOSES - 16 ROW, CENTER, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

1

87482203

ADAPTER

Seed Hose 1.25" OD

16шт.

2

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

38шт.

3

306385A1

HOSE

Air, Bulk, 5" ID, Cut To 62"

1шт.

4

306385A1

HOSE

Air, Bulk, 5" ID, Cut To 62"

1шт.

5

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

4шт.

6

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

7

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

8

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

9

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 3500 mm

1шт.

10

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2900 mm

1шт.

11

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 1950 mm

1шт.

12

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2290 mm

1шт.

13

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2900 mm

1шт.

14

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 3430 mm

1шт.

15

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

16

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

17

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

18

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

19

87502038

CABLE TIE

CABLE STRAP Small

1шт.

20

87502039

CABLE TIE

CABLE STRAP Medium

2шт.

21

87502038

CABLE TIE

CABLE STRAP Small

1шт.

22

87502039

CABLE TIE

CABLE STRAP Medium

2шт.

23

87480076

SPACER

Hose Clamp

4шт.

24

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

4шт.

25

87502039

CABLE TIE

CABLE STRAP Medium

1шт.

26

84225237

BRACKET

Hose Clamp

4шт.

27

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

28

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

29

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

30

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

31

84329267

COUPLING

1.25" Seed Hose

6шт.

32

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 160 mm

6шт.

33

84372879

O-RING

Seed Hose Coupling

6шт.
