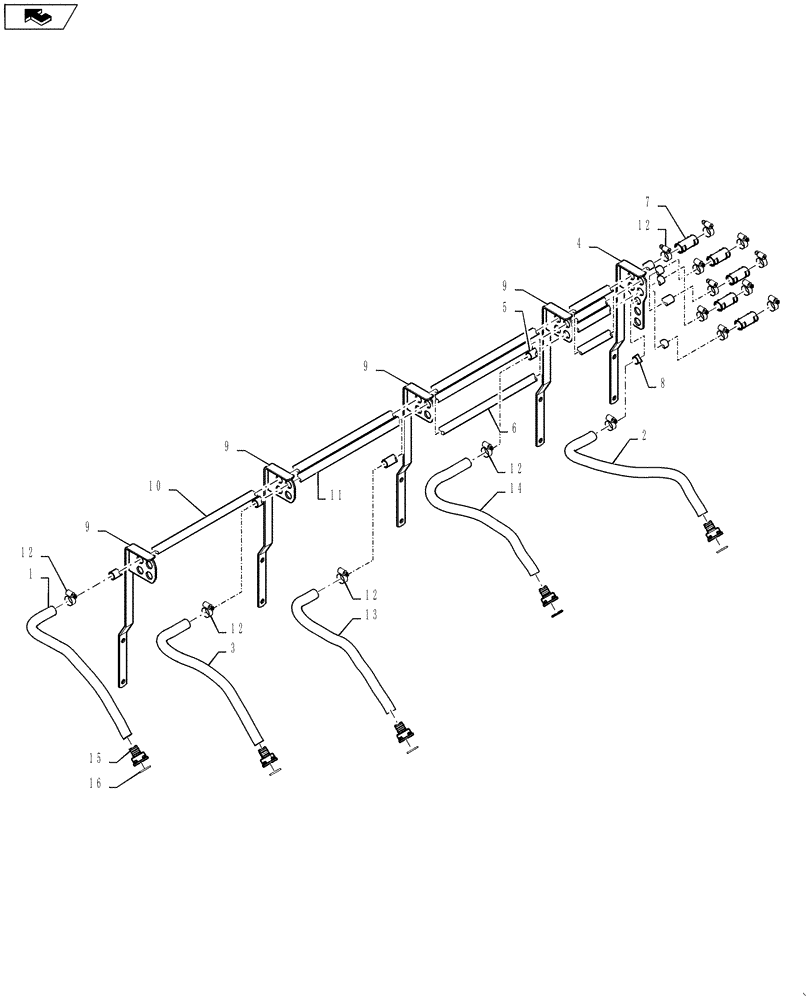

Запчасти Case IH 1250 (80.150.29[03]) - BULK FILL - HOSES - 16 ROW, LEFT HAND, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

1

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 950 mm

1шт.

2

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 950 mm

1шт.

3

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 950 mm

1шт.

4

84299075

SUPPORT

Seed Tube 7-Hole

1шт.

5

84263910

PIPE

Bulk Fill Seed, 1" x 643 mm

1шт.

6

84263909

PIPE

Bulk Fill Seed, 1" x 1404 mm

1шт.

7

87482203

ADAPTER

Seed Hose 1.25" OD

5шт.

8

84256340

PIPE

Bulk Fill Seed, 1" x 90 mm

1шт.

9

84263912

SUPPORT

Seed Tube 4-Hole

4шт.

10

84263907

PIPE

Bulk Fill Seed, 1" x 2930 mm

1шт.

11

84263908

PIPE

Bulk Fill Seed, 1" x 2167 mm

1шт.

12

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

15шт.

13

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 950 mm

1шт.

14

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 950 mm

1шт.

15

84329267

COUPLING

1.25" Seed Hose

5шт.

16

84372879

O-RING

Seed Hose Coupling

5шт.
