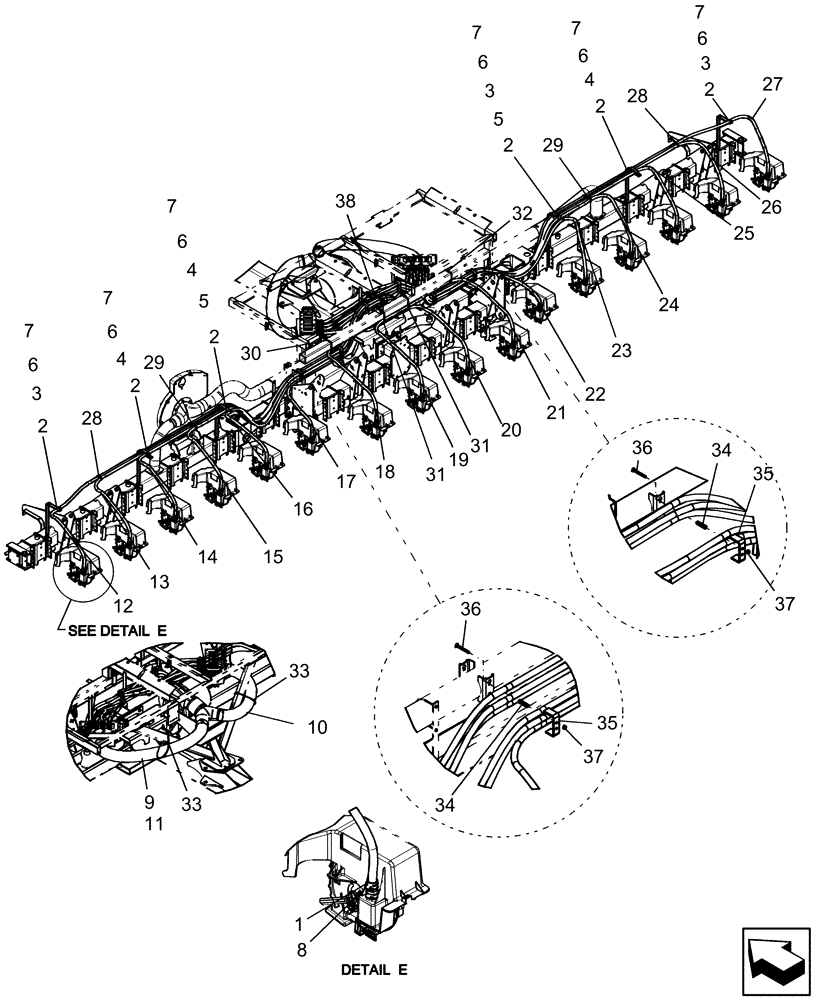

Запчасти Case IH 1250 (80.150.29[02]) - BULK FILL - HOSES - 16 ROW ASN Y9S007001, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING

1

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

32шт.

2

84137849

BAR

6шт.

3

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

4шт.

4

87446019

BRACKET

hose support

2шт.

5

87583066

CLAMP

bulk fill seed hose

2шт.

6

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

10шт.

7

86625061

NUT,1/4"-20, GB

10шт.

8

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

64шт.

9

350642A1

HOSE

black 5" flexible 50' roll

1шт.

Cut to 1676 mm long

1шт.

10

350642A1

HOSE

black 5" flexible 50' roll

1шт.

Cut to 1676 mm long

1шт.

11

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

4шт.

12

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 6945 mm long

1шт.

13

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 7677 mm long

1шт.

14

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 5434 mm long

1шт.

15

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 6305 mm long

1шт.

16

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3814 mm long

1шт.

17

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 4975 mm long

1шт.

18

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 2762 mm long

1шт.

19

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 2127 mm long

1шт.

20

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 2127 mm long

1шт.

21

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 2762 mm long

1шт.

22

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 5050 mm long

1шт.

23

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3814 mm long

1шт.

24

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 6321 mm long

1шт.

25

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 5434 mm long

1шт.

26

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 7690 mm long

1шт.

27

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 6945 mm long

1шт.

28

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

29

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

30

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

31

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

2шт.

32

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

33

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

2шт.

34

87480076

SPACER

hose clamp

4шт.

35

87480074

BRACKET

hose clamp, Years: -01-SEP-09

4шт.

35

84225237

BRACKET

Hose Clamp, Start Year: 01-SEP-09

4шт.

36

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

4шт.

37

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

38

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

1шт.
