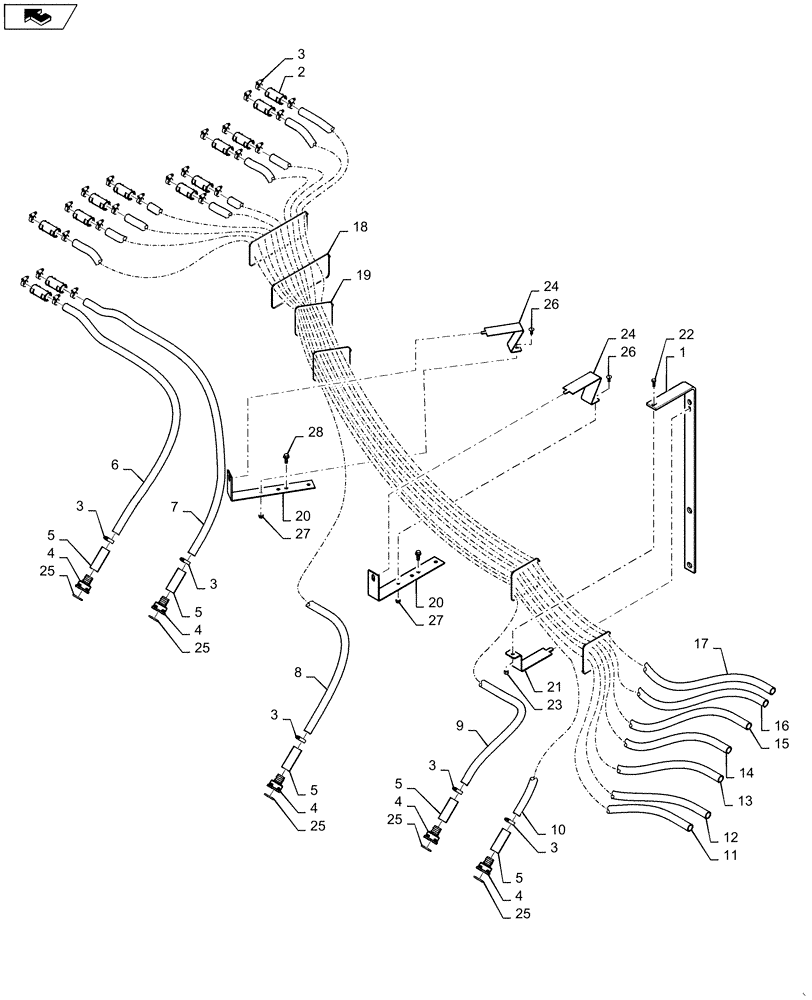

Запчасти Case IH 1250 (80.150.27[02]) - BULK FILL - RH SEED HOSE - 24 ROW, ROW 13 - 17, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

1

84386357

SUPPORT

Bulk Fill Hose

1шт.

2

87482203

ADAPTER

Seed Hose 1.25" OD

12шт.

3

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

29шт.

4

84329267

COUPLING

1.25" Seed Hose

5шт.

5

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 101.6 mm

5шт.

6

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2200 mm

1шт.

7

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2800 mm

1шт.

8

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 3430 mm

1шт.

9

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4200 mm

1шт.

10

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 5004 mm

1шт.

11

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 5290 mm

1шт.

12

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 5290 mm

1шт.

13

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 5290 mm

1шт.

14

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 5290 mm

1шт.

15

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 5290 mm

1шт.

16

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 5290 mm

1шт.

17

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 5290 mm

1шт.

18

291207C1

CLAMP

Large

4шт.

19

291207C1

CLAMP

Large

2шт.

20

84405539

SUPPORT

Bulk Fill

2шт.

21

84405854

SUPPORT

Bulk Fill

1шт.

22

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

23

86625061

NUT,1/4"-20, GB

1шт.

24

84386361

SUPPORT

Bulk Fill

2шт.

25

84372879

O-RING

Seed Hose Coupling

5шт.

26

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

27

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

28

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

4шт.
