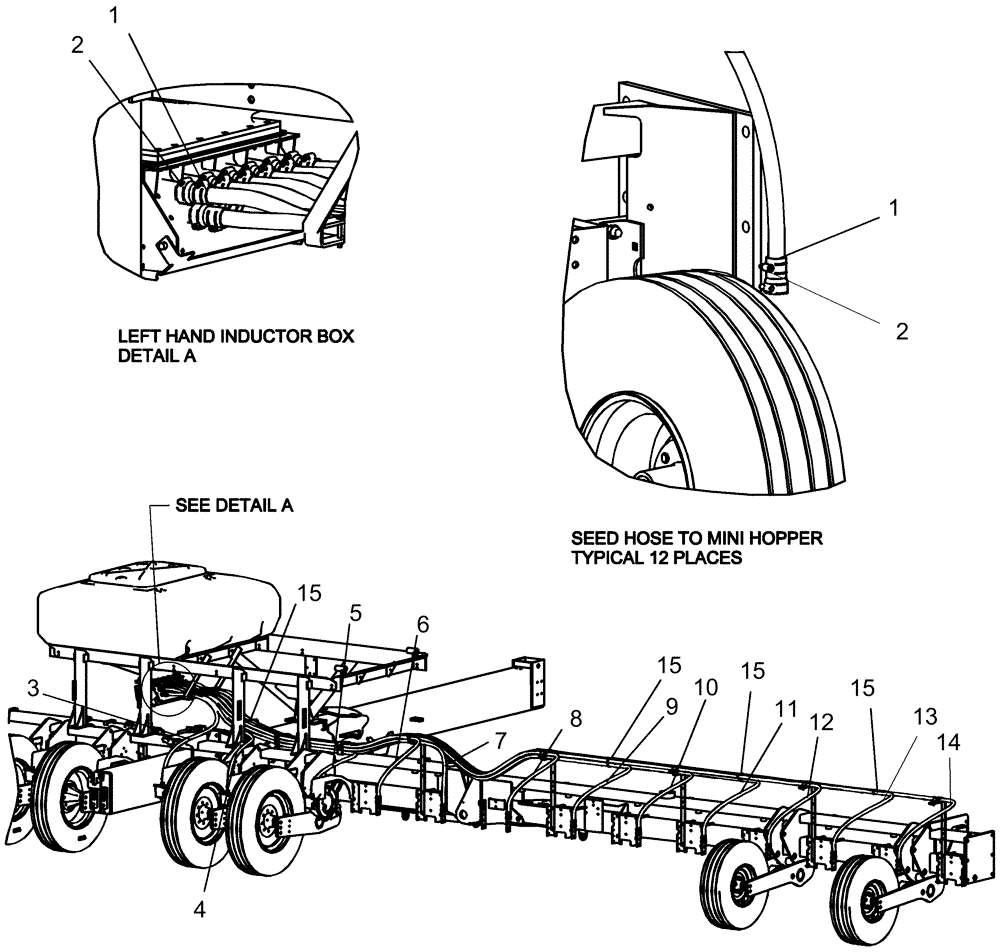

Запчасти Case IH 1250 (80.150.27[01]) - BULK FILL - RH SEED HOSE - 24 ROW, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING

1

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

24шт.

1

449129A1

COUPLING

Seed Hose, Model Year 2011

24шт.

1

84276891

HOSE,31.75 mm ID x 160.00 mm

Mini Hopper Inlet, Model Year 2011

24шт.

2

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

60шт.

3

87584646

HOSE,25.40 mm ID x 2946.00 mm

Bulk Fill PVC Clear Spiral

1шт.

4

87584647

HOSE,25.40 mm ID x 3683.00 mm

Bulk Fill PVC Clear Spiral

1шт.

5

87584648

HOSE,25.40 mm ID x 4639.00 mm

Bulk Fill PVC Clear Spiral

1шт.

6

87584649

HOSE,25.40 mm ID x 5131.00 mm

Bulk Fill Clear Spiral

1шт.

7

87584650

HOSE,25.40 mm ID x 5918.00 mm

Bulk Fill PVC Clear Spiral

1шт.

8

87584651

HOSE,25.40 mm ID x 6807.00 mm

Bulk Fill PVC Clear Spiral

1шт.

9

87584652

HOSE,25.40 mm ID x 7442.00 mm

Bulk Fill PVC Clear Spiral

1шт.

10

87584654

HOSE,25.40 mm ID x 8458.00 mm

Bulk Fill PVC Clear Spiral

1шт.

11

87584655

HOSE,25.40 mm ID x 8915.00 mm

Bulk Fill PVC Clear Spiral

1шт.

12

87584657

HOSE,25.40 mm ID x 10008.00 mm

Bulk Fill PVC Clear Spiral

1шт.

13

87584658

HOSE,25.40 mm ID x 10566.00 mm

Bulk Fill PVC Clear Spiral

1шт.

14

87584659

HOSE,25.40 mm ID x 11354.00 mm

Bulk Fill PVC Clear Spiral

1шт.

3-14

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

3-14

87483976

HOSE

1" x 100', Bulk Fill PVC Black

1шт.

15

529070

CABLE TIE,368.3mm L

CABLE STRAP

4шт.

16

84286644

BUSHING

Spacer (Not Shown)

6шт.
