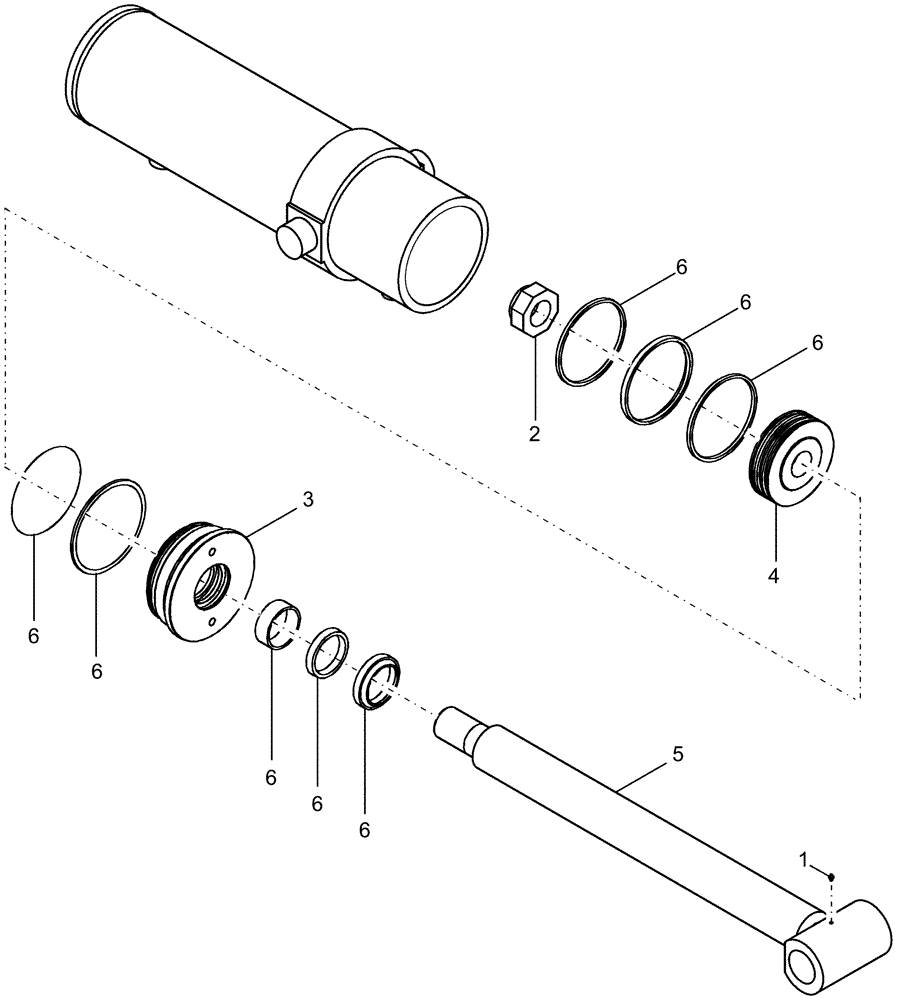

Запчасти Case IH 1250 (35.116.10) - HYDRAULICS - CYLINDER 87462742, 4 1/2" X 12 3/8" MASTER - 24 ROW (35) - HYDRAULIC SYSTEMS

0

87462742

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 314.45mm Stroke

4 1/2" x 12 3/8" master

1шт.

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

3

87506101

HEAD

front

1шт.

4

87506102

PISTON

master cylinder

1шт.

5

87506103

ROD

master cylinder

1шт.

6

87506104

SEAL KIT

1шт.
