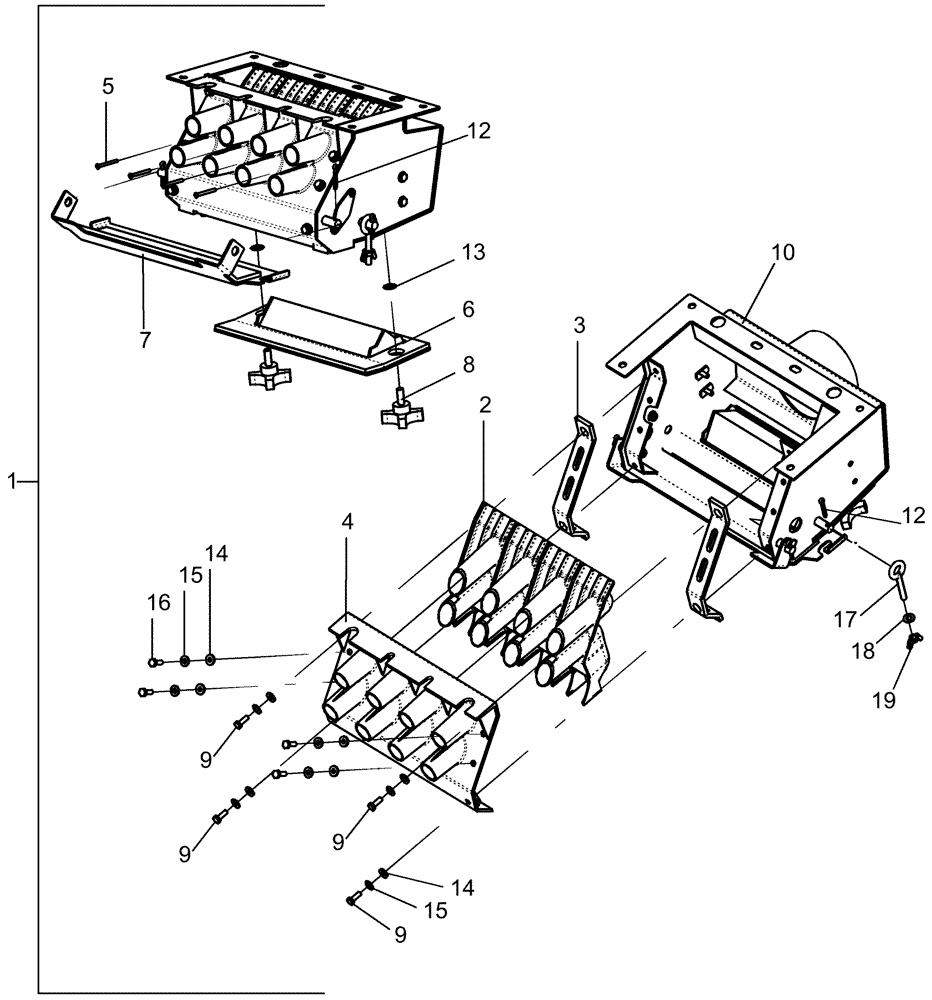

Запчасти Case IH 1250 (80.150.26[02]) - BULK FILL - SEED BOX 12 ROW AND 16 ROW ASN Y9S007001 (80) - CROP STORAGE/UNLOADING

1

87472717

DISTRIBUTOR

8 Port Seed, Inc. 2-19

1шт.

2

87444532

MANIFOLD

segmented inductor

4шт.

3

407094A2

GASKET

neoprene front black 1 1/4" w x 9 5/8" l x 1/4"

2шт.

4

443185A2

COVER

distributor front

1шт.

5

87017483

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

4шт.

6

87472752

GASKET

8 port hatch, Years: -01-MAR-10

1шт.

6

87472750

HATCH

8 port 84193589 required

1шт.

7

87479930

GASKET

bottom cover, Years: -01-MAR-10

1шт.

7

84202248

GASKET

bottom cover, Start Year: 01-APR-10

1шт.

7

87472729

COVER PLATE

8 port bottom

1шт.

8

87446077

KNOB

3/8"-16 x 1" stud

2шт.

9

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

10

NSS

NOT SOLD SEPARAT

HOUSING, 8 port distributor

1шт.

11

2688

CAP

vinyl 1 3/16" x 1 1/2" black

2шт.

Not Shown

1шт.

Cap two lines for 12 row

1шт.

12

87397

COTTER PIN,3/16" OD x 1" L

4шт.

13

87446196

RETAINER

nut, push-on 3/8"

2шт.

14

21676

RUBBER WASHER

1/4"id 5/8" 7/16"tk

8шт.

15

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

8шт.

16

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

17

87749881

EYEBOLT

2шт.

18

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

19

80801

WING NUT

5/16"-18

2шт.
