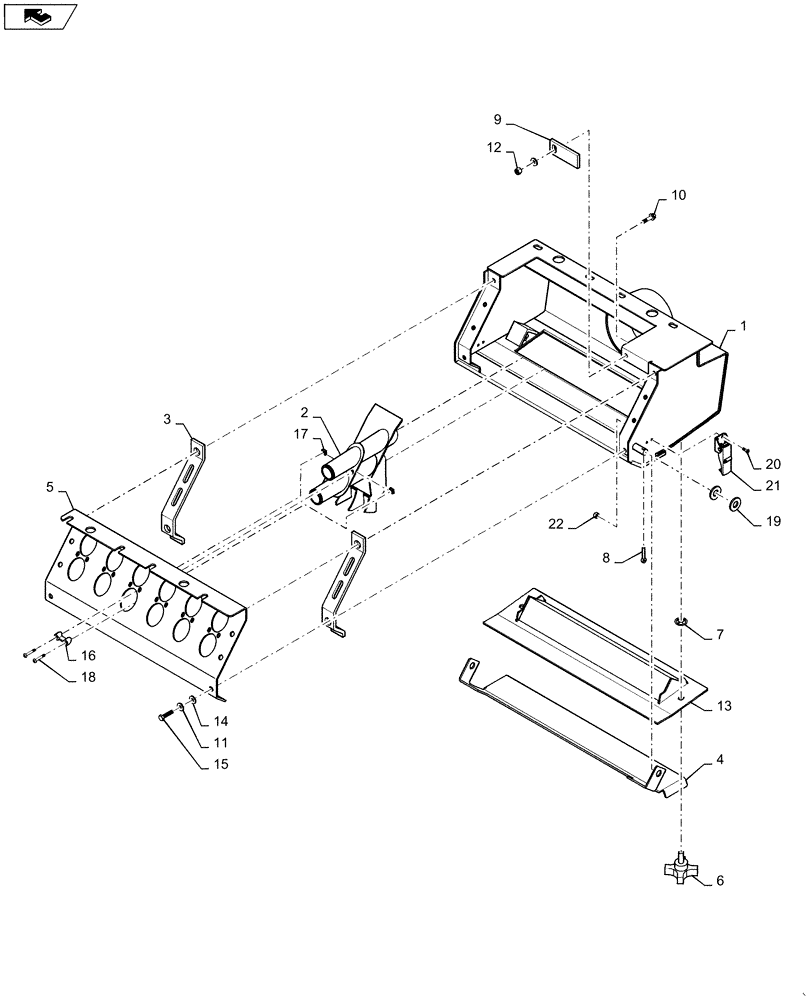

Запчасти Case IH 1250 (80.150.25[03]) - BULK FILL - SEED BOX 24 ROW, MODEL YEAR 2012 (80) - CROP STORAGE/UNLOADING

1

84364553

HOUSING

12 Port Box

1шт.

2

87472417

DISTRIBUTOR

Segmented

6шт.

3

407094A2

GASKET

Front

2шт.

4

84364566

COVER

12 Port Distributor

1шт.

5

84310763

COVER

12 Port Inductor Box

1шт.

5

87498551

GASKET

12 Port Inductor Box Cover (Not Shown)

6шт.

6

87446077

KNOB

3/8-16 x 1" Stud

2шт.

7

87446196

RETAINER

Push-On, 3/8" Bolt Retaining

2шт.

8

87397

COTTER PIN,3/16" OD x 1" L

2шт.

9

87502068

GASKET

1шт.

10

523292

BOLT,1/4" - 20 x 1.03" OAL

1шт.

11

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

9шт.

12

86625061

NUT,1/4"-20, GB

1шт.

13

87748757

HATCH

12 Port With Gasket

1шт.

14

21676

RUBBER WASHER

8шт.

15

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

16

84300549

WEDGE

6шт.

17

84151584

SQUARE NUT

12шт.

18

86511915

SCREW,Pan, #8 - 32 x 1"

12шт.

19

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

20

87302072

HEX SOC SCREW,Btn Hd, #8 - 32 x 1/2"

4шт.

21

84388664

LATCH

Under-Center Double Lock

2шт.

22

87319809

LOCK NUT,M8 x 32, GB

4шт.
