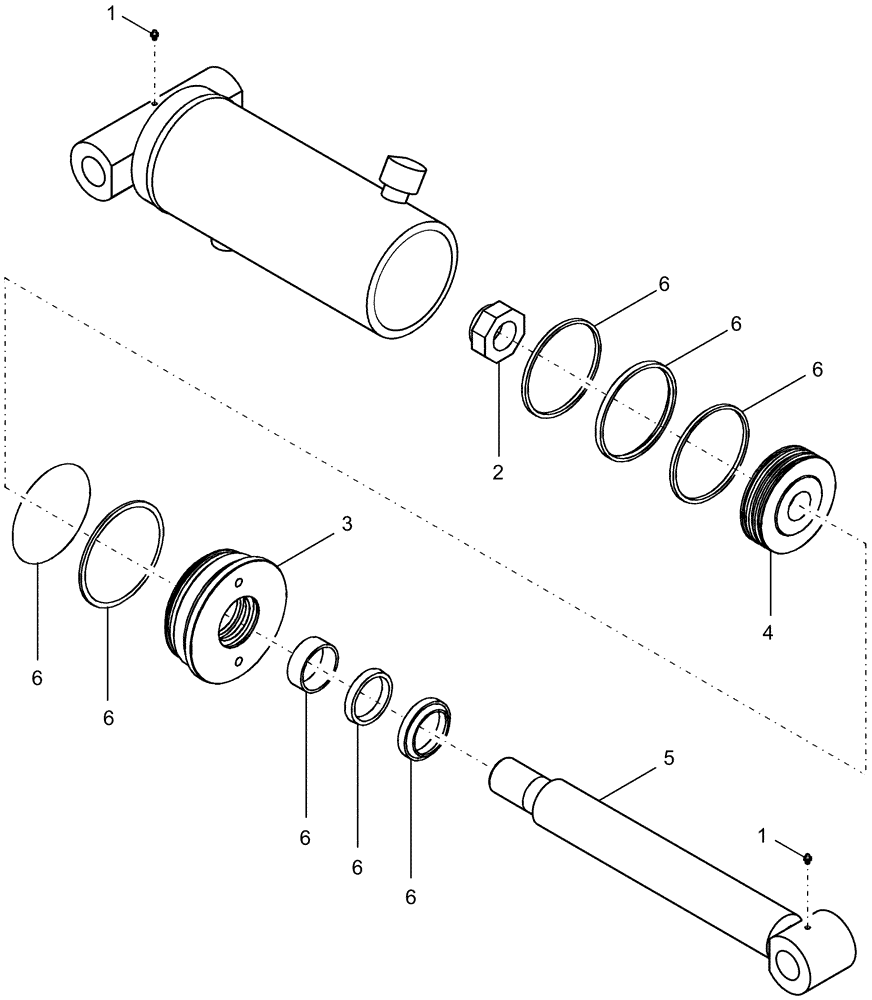

Запчасти Case IH 1250 (35.116.09) - HYDRAULICS - CYLINDER 87462743, 4 1/4" X 6 7/8" SLAVE - 24 ROW WING WHEEL (35) - HYDRAULIC SYSTEMS

1

87462743

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 175.26mm Stroke

Slave, Incl 2 - 7

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

2шт.

3

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

4

87506105

HEAD

Front

1шт.

5

87506106

PISTON

Slave Cylinder

1шт.

6

87506107

ROD

Slave Cylinder

1шт.

7

87506108

SEAL KIT

Hydraulic Slave Cylinder

1шт.
