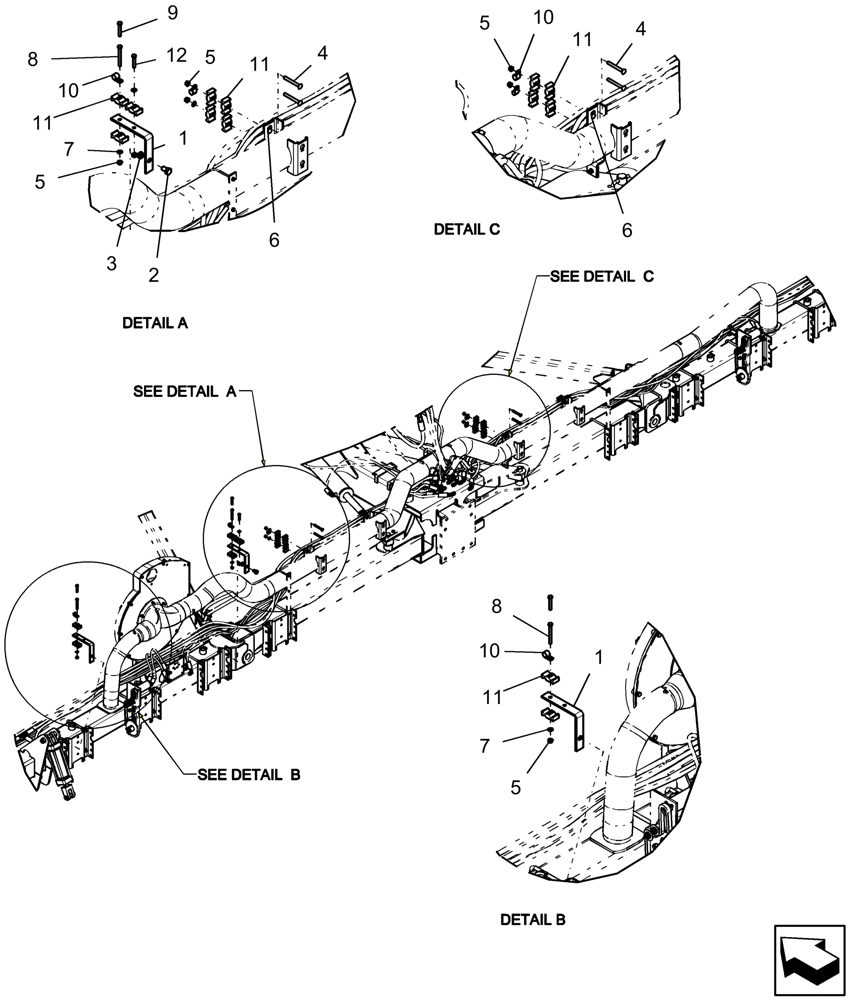

Запчасти Case IH 1250 (80.150.20[02]) - BULK FILL - SEED HOSE BRACKETS - 16 ROW ASN Y9S007001 (80) - CROP STORAGE/UNLOADING

1

87496596

BRACKET

support

6шт.

2

280580

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

3

86632556

JAM NUT,Jam, 5/8"-11, G5

1шт.

4

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

8шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

35шт.

6

280722

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

8шт.

7

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

9шт.

8

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

9

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

6шт.

10

86637979

CLAMP,20.6mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

11

87482623

CLAMP

agriculture large

25шт.

12

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.
