(80.150.20[01]) - BULK FILL - SEED HOSE BRACKETS - 16 ROW BSN Y9S007001

Запчасти Case IH 1250 (80.150.20[01]) - BULK FILL - SEED HOSE BRACKETS - 16 ROW BSN Y9S007001 (80) - CROP STORAGE/UNLOADING

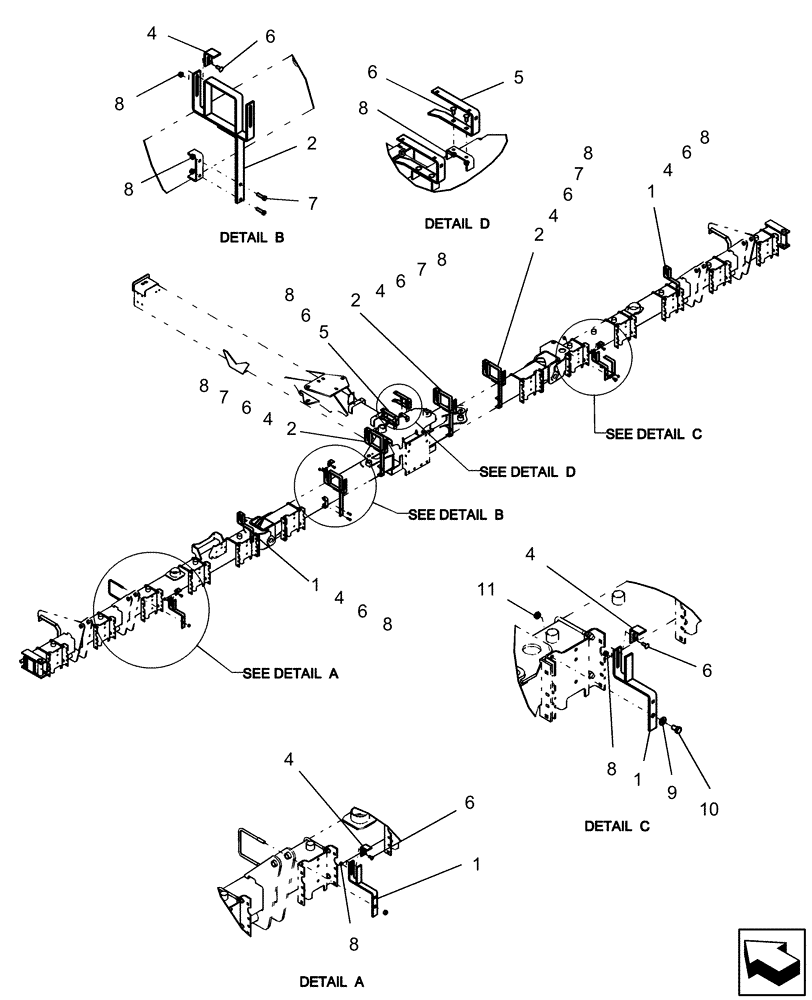

Схема запчастей Case IH 1250 - (80.150.20[01]) - BULK FILL - SEED HOSE BRACKETS - 16 ROW BSN Y9S007001 (80) - CROP STORAGE/UNLOADING
5
2
1
2
8
8
4
7
8
9
8
4
8
8
2
4
4
10
1
6
1
7
6
8
6
5
6
4
8
6
6
4
8
1
7
8
6
2
8
6
4
6
4
11
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87650721

BRACKET

hose, row unit

4шт.

2

87650709

BRACKET

hose routing

4шт.

4

87648230

BRACKET

hose holder

8шт.

5

87648226

BRACKET

electronic control unit

2шт.

6

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

7

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

20шт.

9

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

10

280580

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

11

9636972

JAM NUT,Jam, 5/8"-11, G2

1шт.

Выбрано товаров: 10
