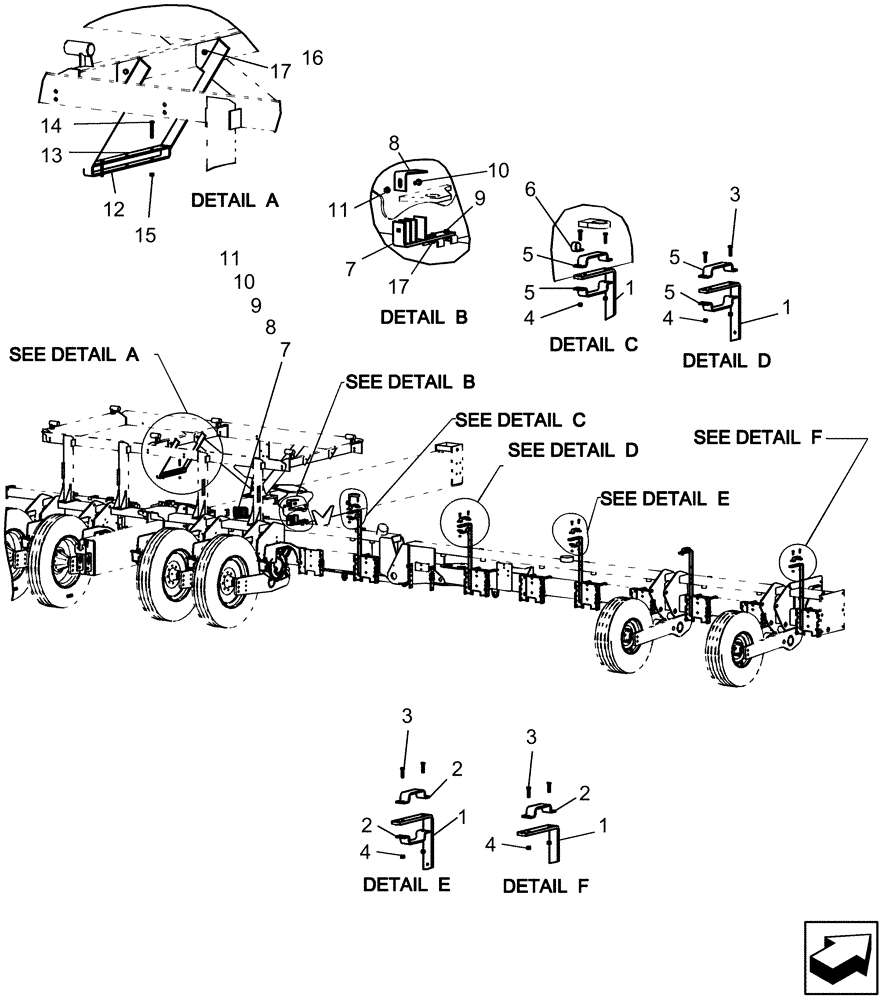

Запчасти Case IH 1250 (80.150.19) - BULK FILL - SEED HOSE BRACKETS - 24 ROW, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING

1

427745A2

BAR

vacuum support

5шт.

2

87446019

BRACKET

hose support

4шт.

3

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

10шт.

4

86625061

NUT,1/4"-20, GB

10шт.

5

87583066

CLAMP

bulk fill seed hose

4шт.

6

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

7

87583059

BRACKET

bulk fill hose routing

2шт.

8

87583058

RETAINER

hose

2шт.

9

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

4шт.

10

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

12

87583062

BRACKET

bulk fill inductor hose routing

1шт.

13

87583064

CLAMP

bulk fill inductor hose

1шт.

14

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

2шт.

15

280129

NUT,1/4"-20

2шт.

16

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

17

9628503

NUT,3/8"-16, G5

2шт.

18

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

12шт.

Not Shown

1шт.

19

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

24шт.

Not Shown

1шт.
