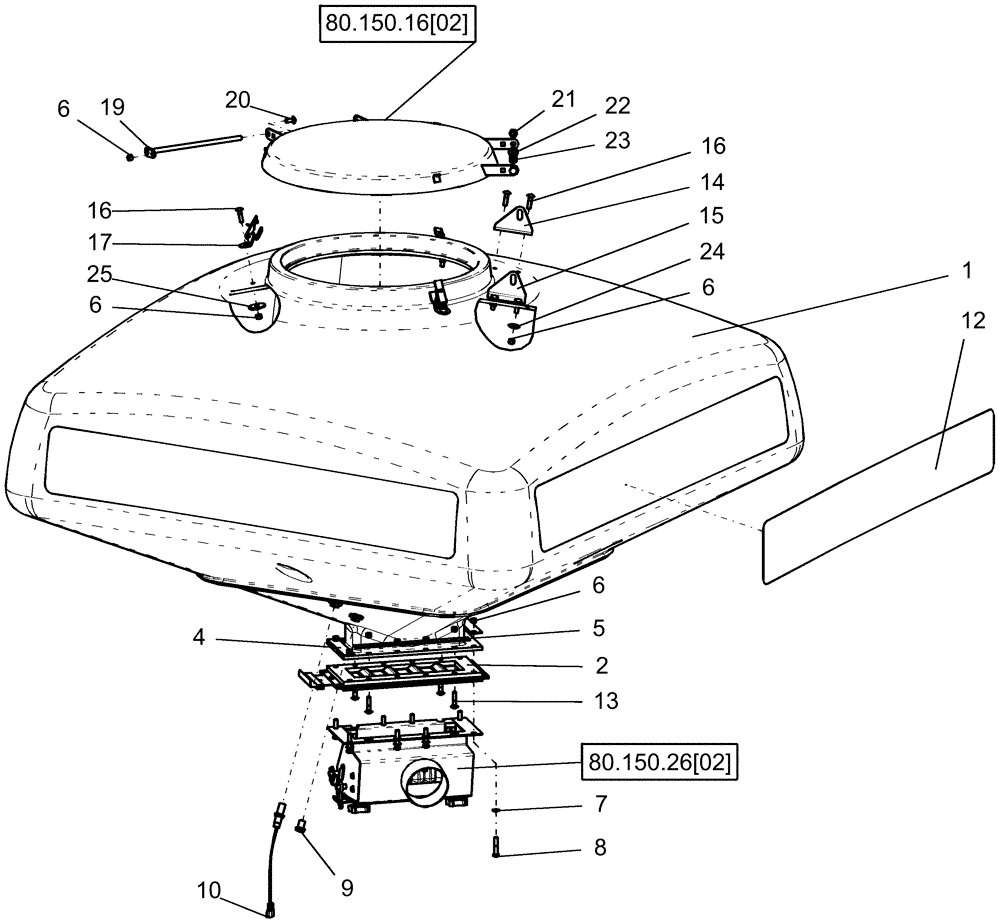

Запчасти Case IH 1250 (80.150.18[02]) - BULK FILL - 50 BUSHEL SEED TANK - 12 ROW AND 16 ROW LH SHOWN ASN Y9S007001 (80) - CROP STORAGE/UNLOADING

1

87488314

TANK

50 bushel with inserts LH

1шт.

Shown

1шт.

1

87488315

TANK

50 bushel with inserts RH

1шт.

Not Shown

1шт.

2

87472784

DOOR

assembly, shut-off seed

1шт.

4

87501781

SECURING STRAP

7 3/8" x 1 1/4"

2шт.

5

87450878

STRAP

13 5/8" x 1"

2шт.

6

88902

NUT,3/8"-16

20шт.

7

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

8

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

9

87565516

PLUG

M18

1шт.

10

404197A1

SENSOR

bin level

1шт.

12

87667427

DECAL

50 bushel tank 16 row

1шт.

Used on LH tank

1шт.

12

87667428

DECAL

50 bushel tank 16 row

1шт.

Used on RH tank

1шт.

13

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

4шт.

14

87481587

SUPPORT

hinge RH

1шт.

15

87481585

SUPPORT

hinge LH

1шт.

16

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

7шт.

17

87481575

LATCH

lid

3шт.

19

87481589

HANDLE

lid

1шт.

20

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

21

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

22

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

23

86992215

LOCK NUT,1/2"-13, GC

2шт.

24

495-81140

WASHER,13/32" x 1 1/4" x .060"

4шт.

25

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

13/32"id x 1 7/8"od x 3/16"

3шт.
