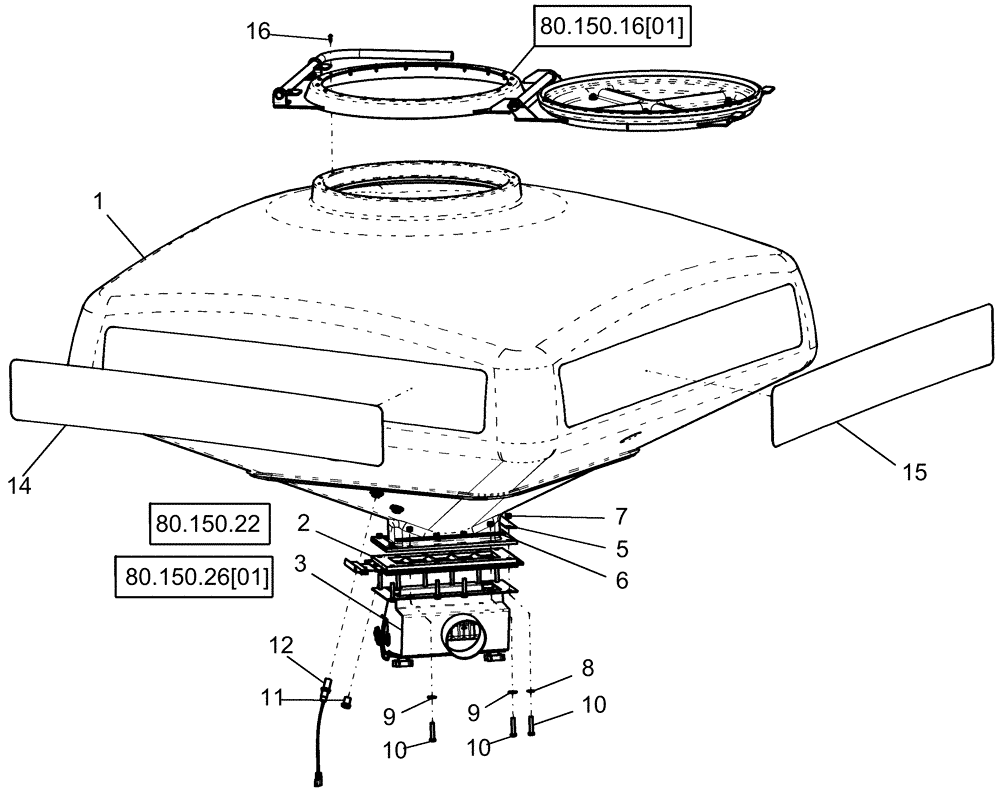

Запчасти Case IH 1250 (80.150.18[01]) - BULK FILL - 50 BUSHEL SEED TANK - 16 ROW LH SHOWN BSN Y9S007001 (80) - CROP STORAGE/UNLOADING

1

87663043

TANK

50 bushel, with inserts

1шт.

2

87454058

GATE ASSY

shut-off

1шт.

3

87443936

DISTRIBUTOR

bulk seed assembly

1шт.

5

87501781

SECURING STRAP

7 3/8" x 1 1/4"

2шт.

3

87504313

DISTRIBUTOR

8 Port Seed

1шт.

6

87450878

STRAP

13 5/8" x 1"

2шт.

7

88902

NUT,3/8"-16

12шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

9

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

10

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

12шт.

11

87565516

PLUG

M18

1шт.

12

404197A1

SENSOR

bin level

1шт.

14

87653274

DECAL

CIH Logo 450 x 106 mm rear of tank

1шт.

No longer used

1шт.

15

87667427

DECAL

1250 CASE IH Early Riser, 50 bushel tank 16 row

1шт.

Used on LH tank

1шт.

Shown

1шт.

15

87667428

DECAL

1250 CASE IH Early Riser, 50 bushel tank 16 row

1шт.

Not Shown

1шт.

Used on RH tank

1шт.

16

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

20шт.
