Запчасти Case IH 1250 (80.150.17) - BULK FILL - SEED TANK MOUNTING - 24 ROW (80) - CROP STORAGE/UNLOADING

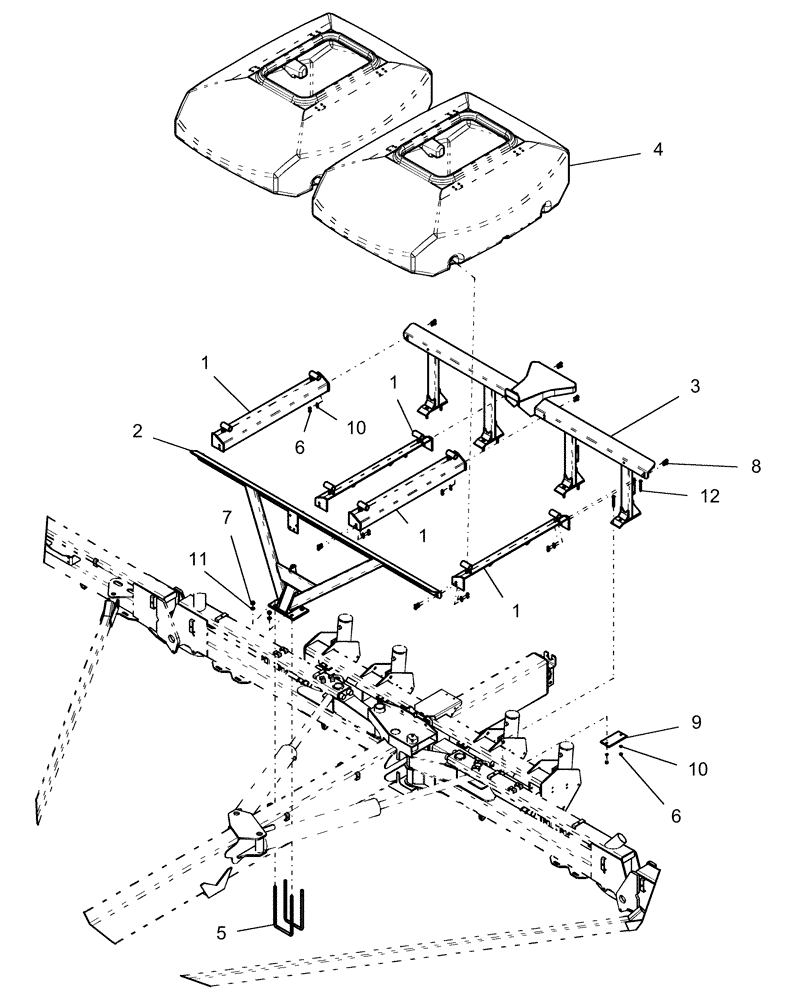

Схема запчастей Case IH 1250 - (80.150.17) - BULK FILL - SEED TANK MOUNTING - 24 ROW (80) - CROP STORAGE/UNLOADING
1
9
2
10
4
8
10
11
3
1
1
6
12
1
7
6
5

Артикул

Название

Примечание

Количество

1

87557044

BRACKET

bulk fill tank side

4шт.

2

87557045

FRAME

front tank mounting

1шт.

3

87557046

FRAME

rear tank mounting

1шт.

4

87505879

TANK

60 bu with inserts

2шт.

Includes four 87621639

1шт.

5

87503060

U-BOLT

us 3/4"-10 x 8.1 wide x 17.75 deep

2шт.

4

87621639

INSERT

assembly bin level

4шт.

6

280431

NUT,1/2"-13, G5

24шт.

7

86518194

NUT,3/4"-10, G8

4шт.

8

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

16шт.

9

87571311

PLATE

mounting

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

24шт.

11

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

12

433-872

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4 1/2", Gr 5

8шт.

Выбрано товаров: 14
