Запчасти Case IH 1250 (80.150.14[02]) - BULK FILL - TANK AND FRAME - 12 AND 16 ROW ASN Y9S007001 (80) - CROP STORAGE/UNLOADING

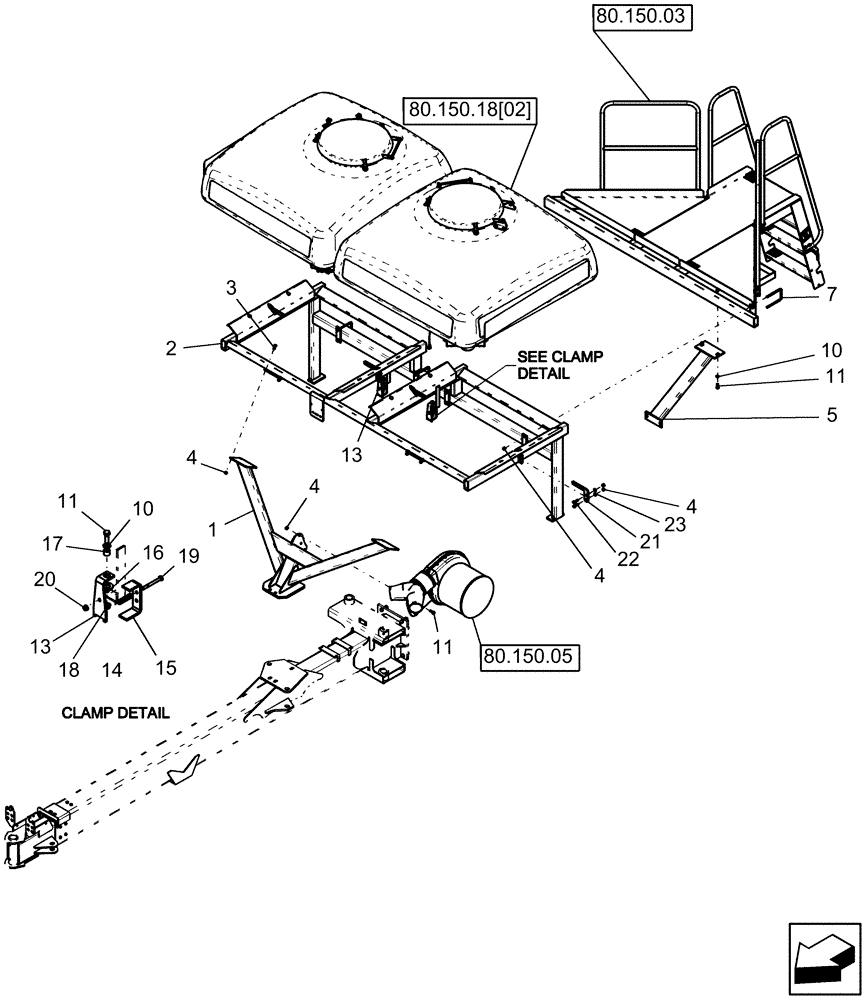

Схема запчастей Case IH 1250 - (80.150.14[02]) - BULK FILL - TANK AND FRAME - 12 AND 16 ROW ASN Y9S007001 (80) - CROP STORAGE/UNLOADING
11
21
20
14
5
4
80.150.05
80.150.03
2
17
19
11
3
23
18
7
15
11
4
4
4
22
10
13
13
1
10
16

Артикул

Название

Примечание

Количество

1

87652471

SUPPORT

bulk fill

1шт.

2

84129455

SUPPORT

bulk fill tanks

1шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

4

87333862

NUT

1/2"-13, GB

29шт.

5

87648119

SUPPORT

platform

1шт.

7

9189

U-BOLT

us 1/2"-13 4 1/8" wide x 7" deep, G5

4шт.

10

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

11

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

7шт.

13

87480072

BRACKET

hose pivot, Years: -01-SEP-09

2шт.

13

84225236

BRACKET

Hose Pivot, Start Year: 01-SEP-09

2шт.

14

87480076

SPACER

hose clamp

2шт.

15

87480074

BRACKET

hose clamp, Years: -01-SEP-09

2шт.

15

84225237

BRACKET

Hose Clamp, Start Year: 01-SEP-09

2шт.

16

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

17

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

2шт.

18

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

19

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

20

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

21

84129457

RETAINER

bulk fill tank

4шт.

22

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

23

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

Выбрано товаров: 21
