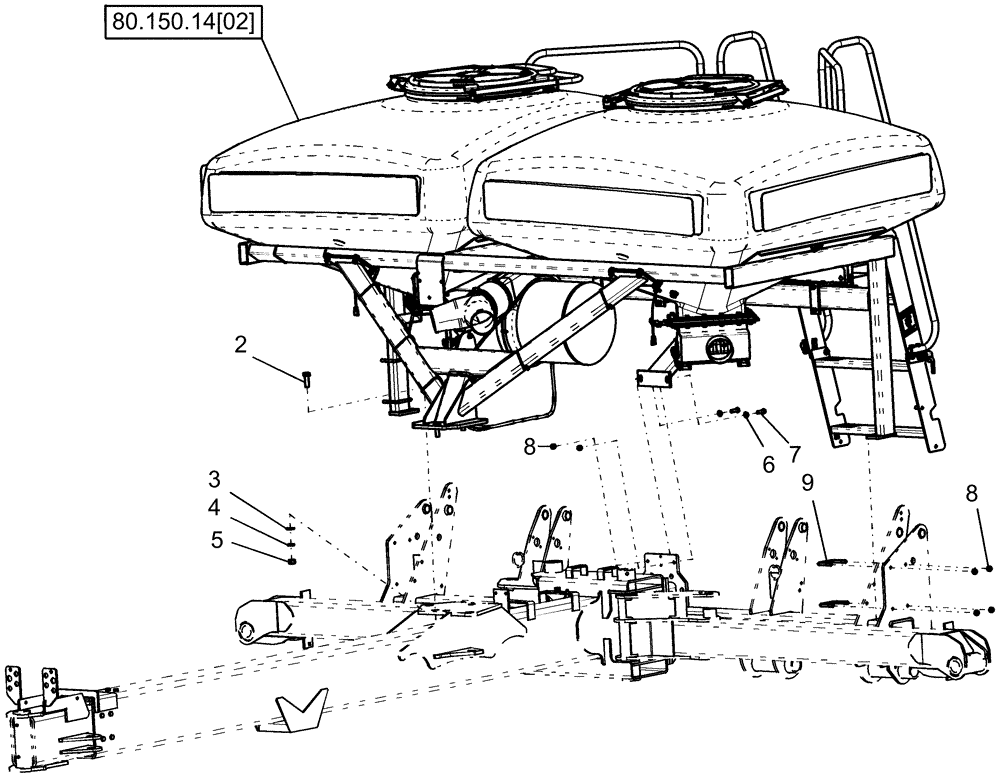

Запчасти Case IH 1250 (80.150.12) - BULK FILL - TANK FRAME MOUNT - 12 ROW AND 16 ROW (80) - CROP STORAGE/UNLOADING

2

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

3шт.

3

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

3шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

3шт.

5

86518194

NUT,3/4"-10, G8

3шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

7

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

8

87333862

NUT

1/2"-13, GB

10шт.

9

2643

U-BOLT

us 1/2"-13 4 1/8"w 3 1/8"d with 1" thread

4шт.
