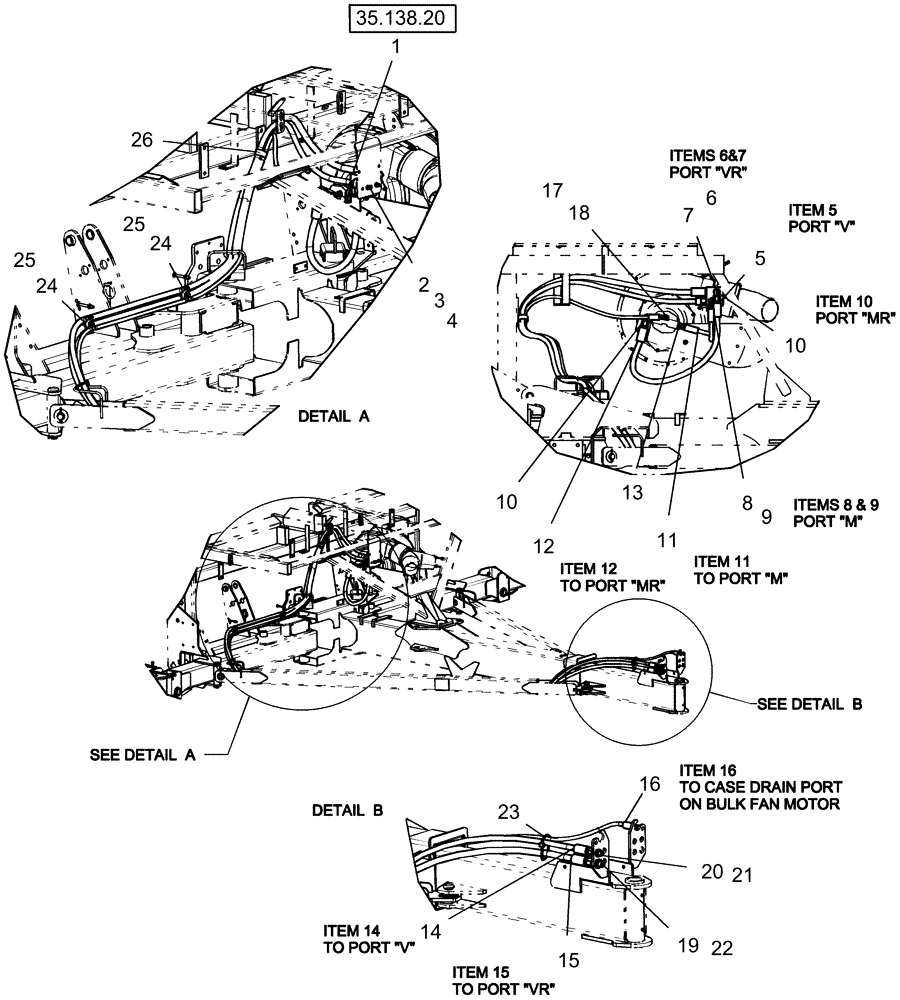

Запчасти Case IH 1250 (80.150.09) - BULK FILL - HYDRAULICS - 12 ROW NON-AFS (80) - CROP STORAGE/UNLOADING

1

296823A2

VALVE

check

1шт.

2

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

9628503

NUT,3/8"-16, G5

2шт.

5

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

6

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

7

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

8

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

9

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

10

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

11

390649R92

HYDRAULIC HOSE

1/2" x 19" fl

1шт.

12

87506122

HOSE

19 mm id x 1050 mm

1шт.

13

87329794

FITTING

3/4" mb x 1/2" mj

1шт.

14

426942A1

HYDRAULIC HOSE

5/8" x 354" fl

1шт.

15

87714976

HYDRAULIC HOSE

19 mm x 9000 mm fl

1шт.

16

1284268C1

HYDRAULIC HOSE

3/8" x 340" fl

1шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

18

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

19

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

20

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

21

595460

BHD LOCK NUT,7/8" - 14

1шт.

22

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

23

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

24

87482623

CLAMP

agriculture large

2шт.

25

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

26

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.
