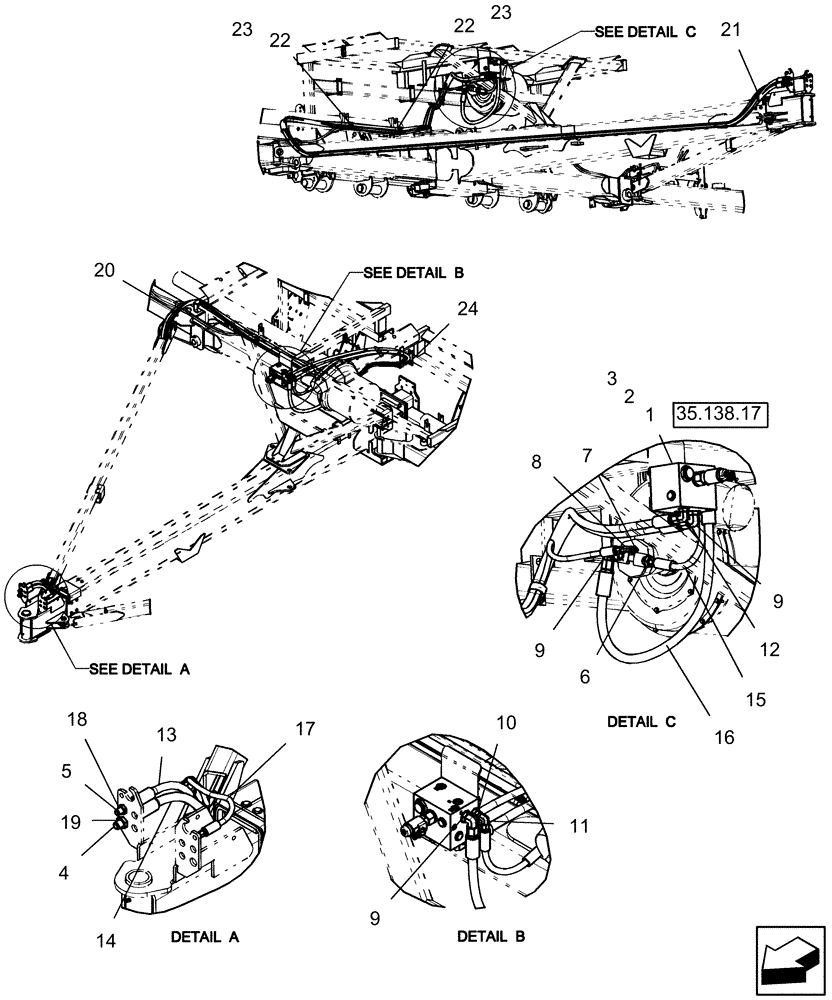

Запчасти Case IH 1250 (80.150.07[02]) - BULK FILL - HYDRAULICS - 16 ROW AFS ASN Y9S007001 (80) - CROP STORAGE/UNLOADING

1

87438424

VALVE

assembly bulk fill PTO with plugs

1шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

5

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

6

87329794

FITTING

3/4" mb x 1/2" mj

1шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

8

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

10

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

11

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

12

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

13

410709A1

HYDRAULIC HOSE,16mm ID x 9700mm L, SAE 100R17

5/8" x 382" fl

1шт.

14

410710A1

HYDRAULIC HOSE

3/4" x 382" fl

1шт.

15

390649R92

HYDRAULIC HOSE

1/2" x 19" fl

1шт.

16

87506122

HOSE

19 mm id x 1050 mm

1шт.

17

1284289C1

HYDRAULIC HOSE

3/8" x 375" fl

1шт.

18

595460

BHD LOCK NUT,7/8" - 14

1шт.

19

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

20

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

21

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

22

87482623

CLAMP

agriculture large

2шт.

23

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

24

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.
