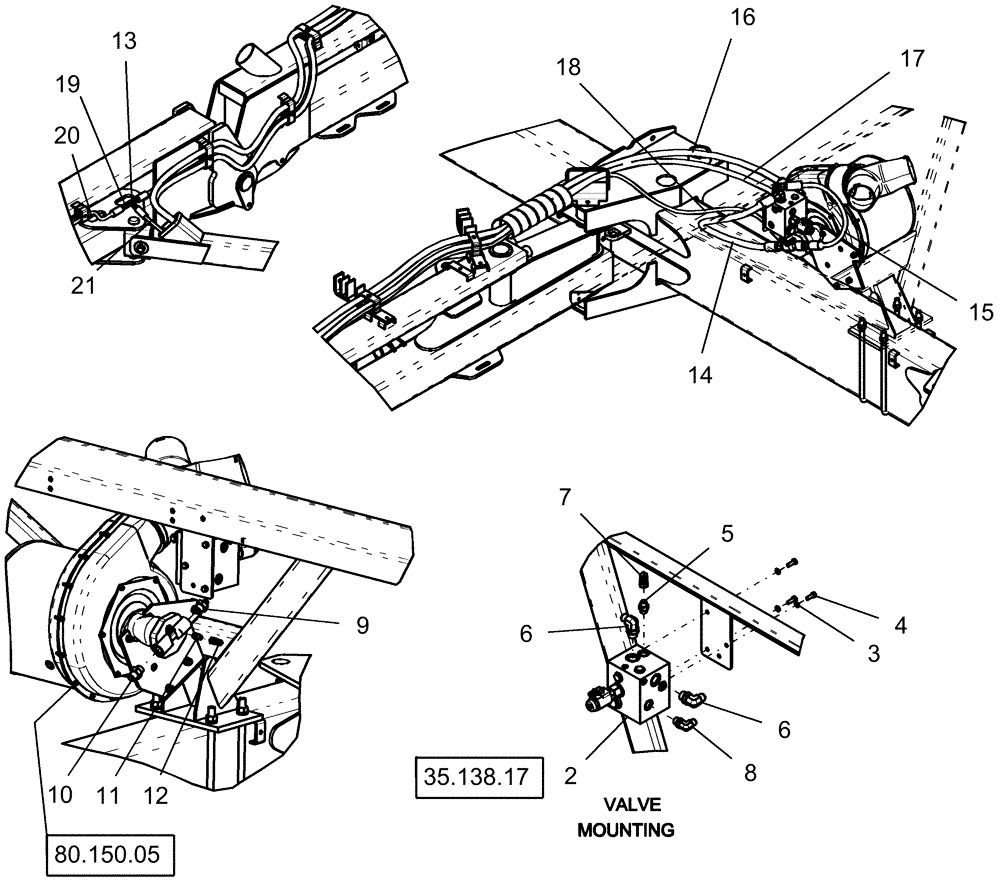

Запчасти Case IH 1250 (80.150.06) - BULK FILL - BLOWER AND VALVE - 24 ROW (80) - CROP STORAGE/UNLOADING

2

87438424

VALVE

assembly bulk fill PTO with plugs

1шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

5

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

6

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

7

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

9

87329794

FITTING

3/4" mb x 1/2" mj

1шт.

10

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

11

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

12

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

13

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

14

87506122

HOSE

19 mm id x 1050 mm

1шт.

15

1336924C1

HYDRAULIC HOSE

1/2" x 27" fl

1шт.

16

87589844

HYDRAULIC HOSE,19mm ID x 13840mm L, SAE 100R17

19 mm x 13840 mm fl

1шт.

17

87589826

HYDRAULIC HOSE,16mm ID x 13840mm L, SAE 100R17

16 mm x 13840 mm fl

1шт.

18

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8" x 225" coiled

1шт.

19

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

20

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

1шт.

21

1284264C1

HYDRAULIC HOSE

3/8" x 290" fl

1шт.
