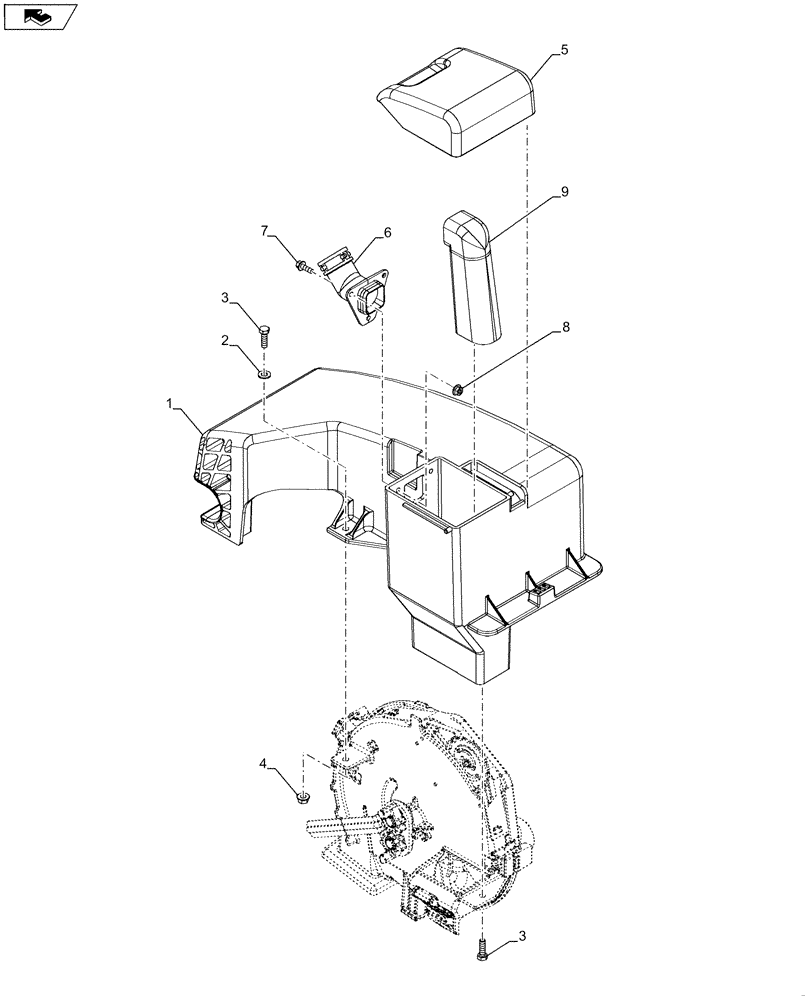

Запчасти Case IH 1250 (80.150.06[02]) - BULK FILL - MINI HOPPER, MODEL YEAR 2012 (80) - CROP STORAGE/UNLOADING

1

84308057

HOPPER

Mini, Bulk Fill

1шт.

2

495-11034

WASHER,5/16", SAE

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

84366466

LID

Mini Hopper

1шт.

6

84315775

QUICK MALE COUPLING

Elbow

1шт.

6

84424020

DIVIDER

Crop, Seed Flow

1шт.

7

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

9

84339808

ELBOW

Seed Deceleration

1шт.

10

84375592

CAP

To plug Quick Coupler Not Being Used (Red) (Not Shown)

1шт.

11

84329267

COUPLING

To Quick Coupler (Black) (Not Shown)

1шт.

12

84372879

O-RING

Quick Coupler (Not Shown)

1шт.

13

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

Quick Coupler (Not Shown)

1шт.

14

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 101.6mm (Not Shown)

1шт.
