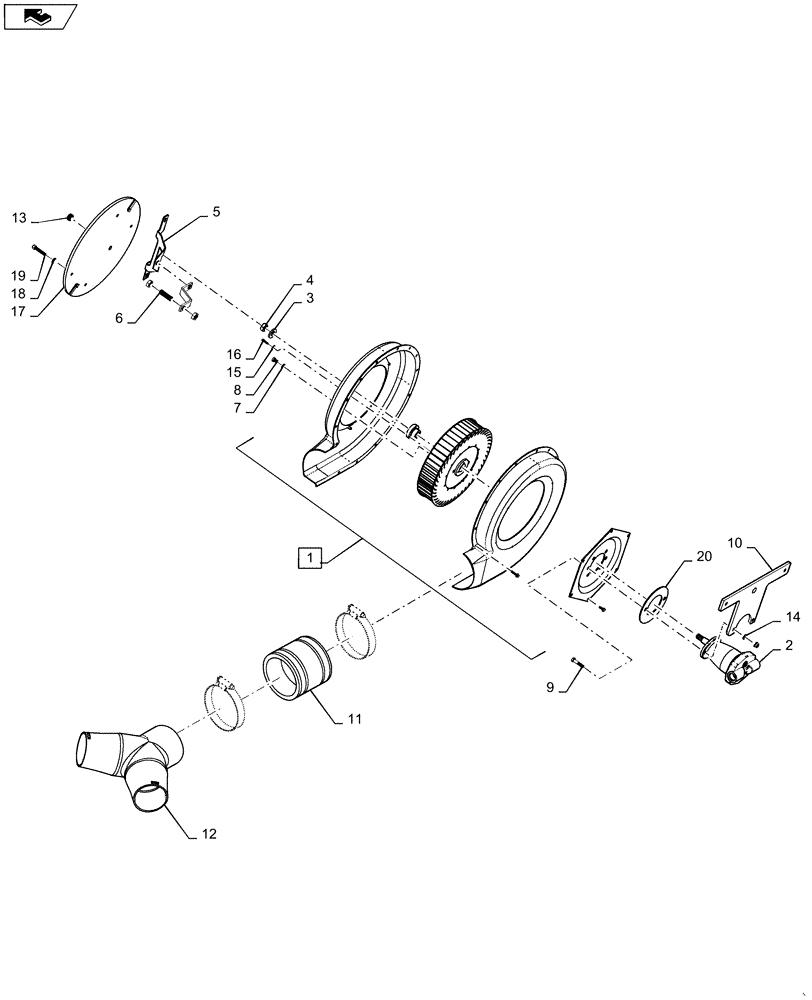

Запчасти Case IH 1250 (80.150.05) - BLOWER, FILLER (80) - CROP STORAGE/UNLOADING

1

84394514

FAN

bulk fill 6"

1шт.

2

278188A1

MOTOR

9.8 cm3 (.6 in3) displacement, fan drive

1шт.

2

278188A1R

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump

1шт.

2

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.

2

55555C1

KEY

1/4" square

1шт.

2

D63349

SEAL

motor shaft

1шт.

2

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

2

271429

SNAP RING,1.625", Int, #162

1шт.

3

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

4

86624024

THIN NUT,5/8"-18, Thin, G8

1шт.

5

84386347

SUPPORT

fan speed sensor mount

1шт.

6

324049A1

SENSOR

speed hall

1шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

8

88814

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

9

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

10

86988858

BRACKET

blower mount

1шт.

11

312340A1

ADAPTER

Rubber With Clamps

1шт.

11

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

12

312284A1

TUBE,123.8 mm ID, 130.2 - 152.4 mm OD

air divider

1шт.

13

435810A1

GROMMET,5/8" ID x 1-1/8" OD x 3/8" Thk

1 1/8"od 5/8"id 3/8"thk

1шт.

14

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

16

88814

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

17

84386350

SCREEN

Bulk Fill Fan

1шт.

18

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

19

86624115

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

6шт.

20

84395655

SUPPORT

Motor Shim

1шт.
