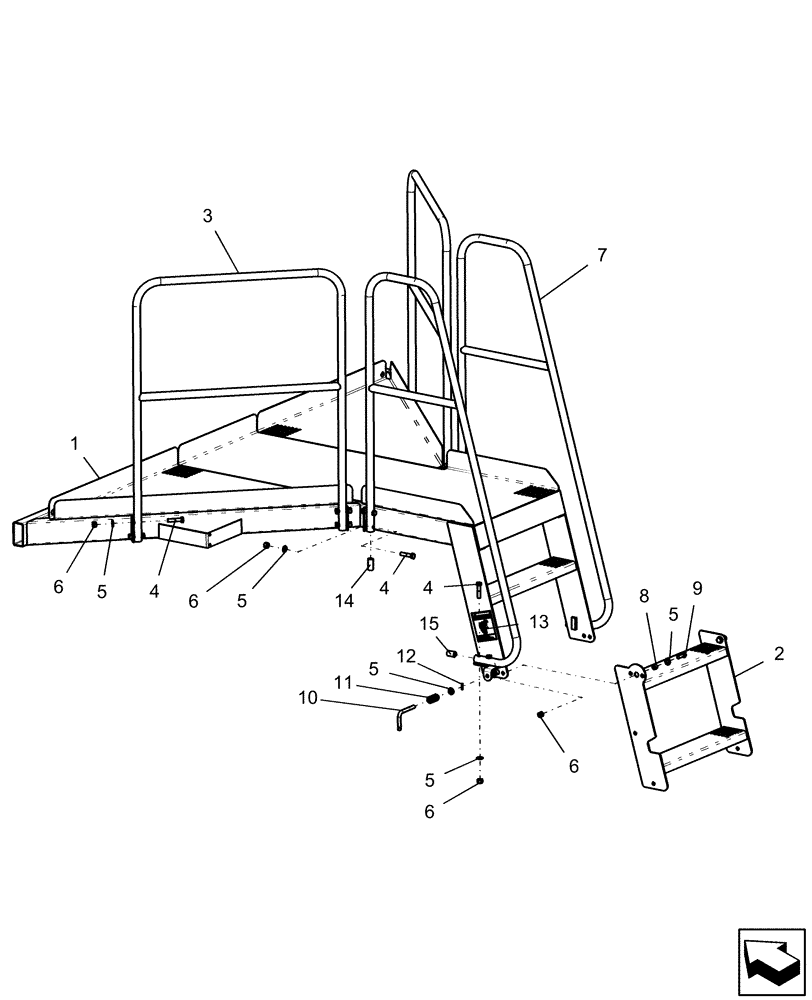

Запчасти Case IH 1250 (80.150.03) - BULK FILL - PLATFORM AND HANDRAIL - 12 ROW AND 16 ROW (80) - CROP STORAGE/UNLOADING

1

87667429

PLATFORM

bulk fill tanks with decals

1шт.

2

87652472

LADDER

platform

1шт.

3

87670219

HANDRAIL

platform

2шт.

4

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

16шт.

5

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

19шт.

6

86521610

FLANGE NUT,Flg, 1/2"-13

18шт.

7

87670223

HANDRAIL

platform ladder

2шт.

8

87565480

TUBE

hinge

2шт.

9

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

10

87627224

PIN

lock

1шт.

11

1969125C1

SPRING

C .08 wire x 1.07 od x 1.98 long

1шт.

12

82895491

LOCK PIN,4.76mm OD x 25.4mm L, Slotted

1шт.

13

144370A1

WARNING DECAL

Stay Clear

2шт.

14

87714872

TUBE,13.081 mm ID x 22.225 mm OD x 47 mm L

railing reinforcement

6шт.

15

87714880

TUBE,13.081 mm ID x 22.225 mm OD x 35 mm L

railing reinforcement

2шт.
