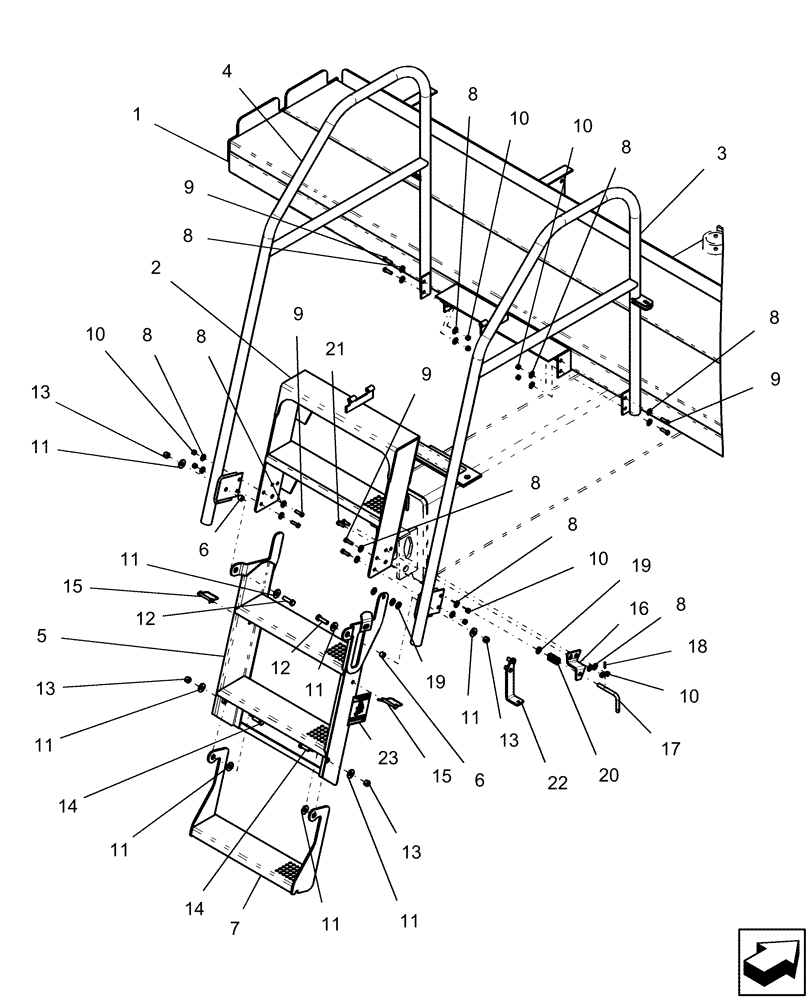

Запчасти Case IH 1250 (80.150.01[01]) - BULK FILL - LADDER - 24 ROW BSN Y9S007001 (80) - CROP STORAGE/UNLOADING

1

87567080

PLATFORM

rear folding

2шт.

2

87567086

MOUNTING PARTS

rear ladder support

1шт.

3

87567087

HANDRAIL

rear platform RH

1шт.

4

87567088

HANDRAIL

rear platform LH

1шт.

5

87567081

LADDER

platform

1шт.

5

87634660

LADDER

platform, with decal

1шт.

Includes decal 144370A1

1шт.

6

87565480

TUBE

hinge

2шт.

7

87567082

STEP

platform extension

1шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

18шт.

9

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

10

88902

NUT,3/8"-16

10шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

12

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

13

86992215

LOCK NUT,1/2"-13, GC

4шт.

14

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

15

87574044

PIN

safety with tab lock

2шт.

16

87627225

BRACKET

pin support

1шт.

17

87627224

PIN

lock

1шт.

18

82895491

LOCK PIN,4.76mm OD x 25.4mm L, Slotted

1шт.

19

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

20

1969125C1

SPRING

C .08 wire x 1.07 od x 1.98 long

1шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

87627228

STOP

ladder

1шт.

23

144370A1

WARNING DECAL

Stay Clear

1шт.
