Запчасти Case IH 1250 (35.116.06) - HYDRAULICS - CYLINDER 87596774, 3 1/2" X 13 3/4" - MASTER CYLINDER, 16 ROW (35) - HYDRAULIC SYSTEMS

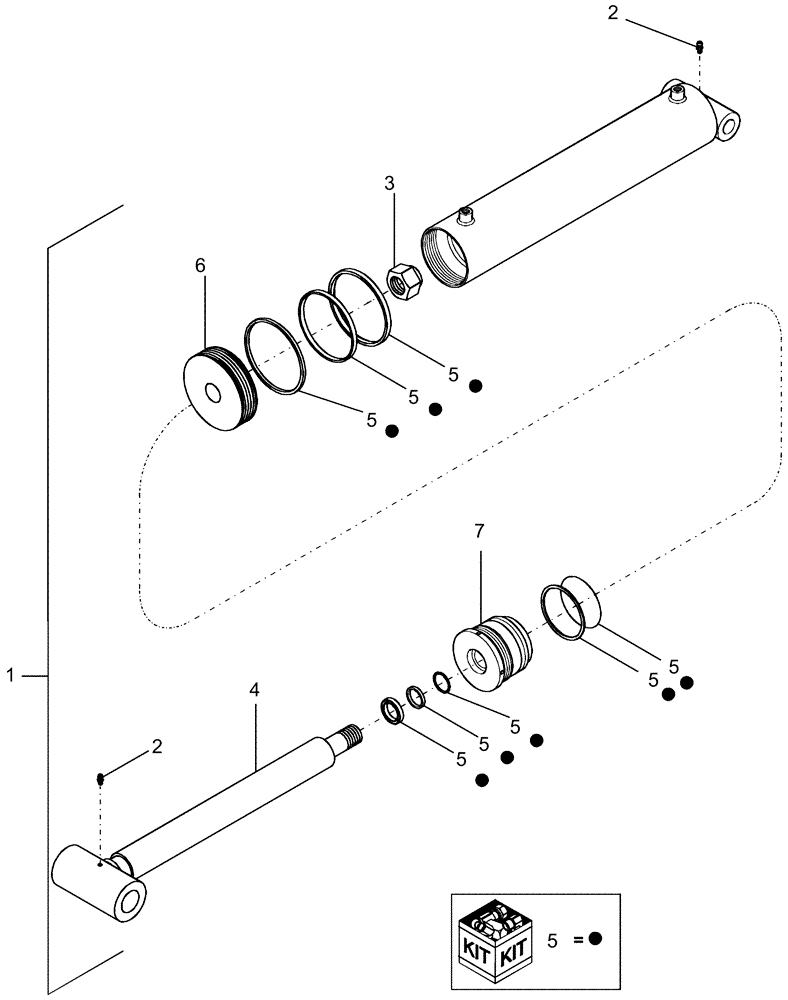

Схема запчастей Case IH 1250 - (35.116.06) - HYDRAULICS - CYLINDER 87596774, 3 1/2" X 13 3/4" - MASTER CYLINDER, 16 ROW (35) - HYDRAULIC SYSTEMS
5
5
3
5
5
5
2
6
7
1
5
5
4
5
2
5

Артикул

Название

Примечание

Количество

1

87596774

CYLINDER

3 1/2" x 13 3/4"

1шт.

1

84525025R

REMAN-HYD CYLINDER

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, 3 1/2" x 13 3/4" - MASTER CYLINDER, 16 ROW" (1/07-), Reman for New PN 87596774

1шт.

1

84525025C

CORE-HYD CYLINDER

Return Number

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

2шт.

3

87314800

LOCK NUT

1"-14, GA

1шт.

4

87633991

ROD

cylinder, 2"

1шт.

5

87634004

SEAL KIT

3 1/2" bore, 2" rod

1шт.

6

87633992

PISTON

cylinder, 3 1/2"

1шт.

7

87633995

HEAD

3 1/2"

1шт.

Выбрано товаров: 9
