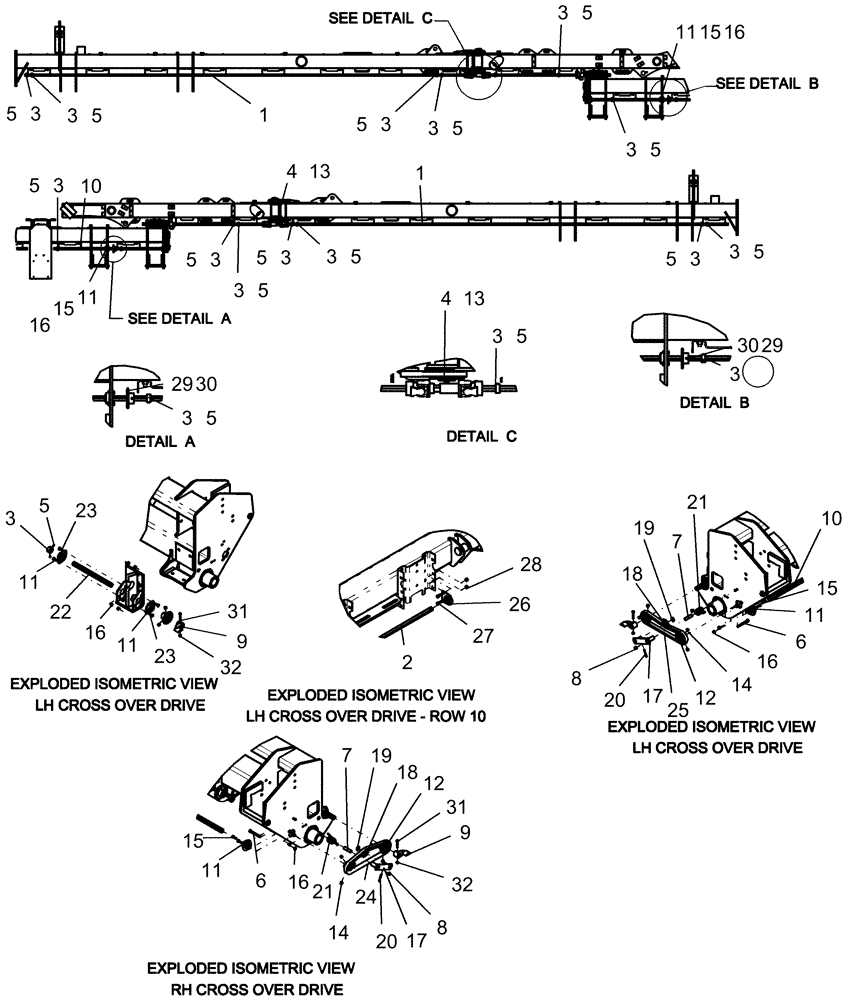

Запчасти Case IH 1250 (75.300.07) - DRIVELINE - 24 ROW MECHANICAL DRIVE (75) - SOIL PREPARATION

1

87462825

SHAFT

hex 22.2 mm x 5755 mm

2шт.

2

87462835

SHAFT

hex 22.2 x 1205

2шт.

3

22224

COLLAR

lock, 7/8" id

14шт.

4

87444140

DRIVE SHAFT

telescoping

2шт.

5

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

36шт.

6

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

7

87505783

SLEEVE

tensioner pivot 10.33 mm id x 15.88 mm od x 60 mm long

2шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

9

87539852

COUPLING

cross over drive

4шт.

10

87462834

SHAFT

hex 22.2 mm x 1500 mm

2шт.

11

87566583

FLANGED BEARING,22.25mm ID

assembly, flangette

8шт.

12

87503166

SPROCKET

15 tooth 50 chain

4шт.

13

86542823

SET SCREW,Sq Hd, 3/8"-16 x 7/8", Cup Pt

4шт.

14

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

15

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

16

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

17

87550916

TENSIONER

chain

2шт.

18

87536428

SPROCKET

50 x 10 idler

2шт.

19

495-81178

WASHER,21/32" x 1 1/8" x .048"

2шт.

20

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

21

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

2шт.

22

87557041

SHAFT

hex 22 mm x 348 mm

2шт.

23

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

24

87672339

CHAIN

cross-over drive

1шт.

25

87672339

CHAIN

cross-over drive

1шт.

26

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

7шт.

27

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

28

247780

SERRATED NUT,Flg, USR, 3/8"-16

14шт.

29

87610744

SPROCKET

50B18

2шт.

30

483-1318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

2шт.

31

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

32

280129

NUT,1/4"-20

4шт.
