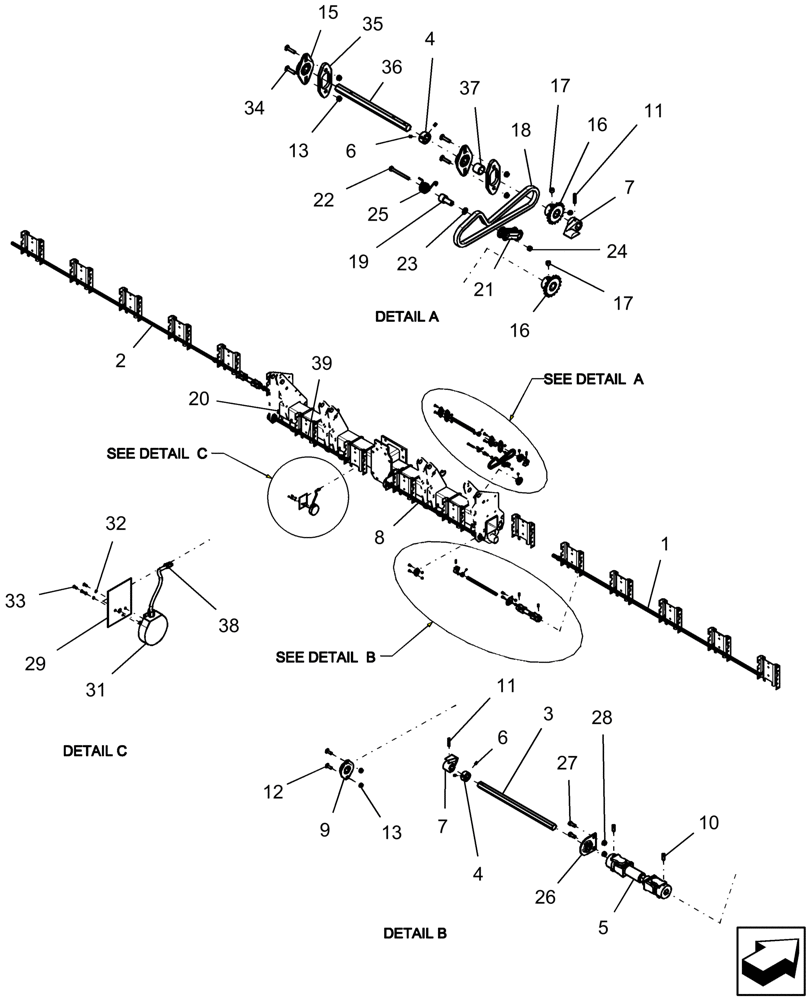

Запчасти Case IH 1250 (75.300.02[01]) - DRIVELINE - 16 ROW HYDRAULIC DRIVE BSN Y9S007001 (75) - SOIL PREPARATION

1

176895A1

BAR

shaft hex 7/8" x 126 13/32"

1шт.

2

402951A1

DRIVE SHAFT

7/8" hex x 3550 mm

1шт.

3

87589426

SHAFT

hex 22.2 mm x 443 mm

2шт.

4

22224

COLLAR

lock, 7/8" id

10шт.

5

87444140

DRIVE SHAFT

telescoping

2шт.

6

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

20шт.

7

87539852

COUPLING

cross over drive

4шт.

8

87462834

SHAFT

hex 22.2 mm x 1500 mm

1шт.

9

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

2шт.

10

86542823

SET SCREW,Sq Hd, 3/8"-16 x 7/8", Cup Pt

4шт.

11

87016635

PIN,6.35mm OD x 38.1mm L

, Years: -01-MAR-10

8шт.

11

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

, Start Year: 01-APR-10

8шт.

11

20356

NUT,1/4"-20, GB

, Start Year: 01-APR-10

8шт.

12

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

12шт.

13

145458

SERRATED NUT,5/16"-18 GR 5 ZND

12шт.

15

87673199

BALL BEARING,22.25mm ID

7/8" hex bore, 2 slot

4шт.

16

437627A1

SPROCKET

#40 18 tooth

4шт.

17

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

18

NSS

NOT SOLD SEPARAT

chain

2шт.

Use 71 links of 1790D bulk chain plus one connecting link 25195

1шт.

18

1790D

CHAIN (AG)

#40 bulk, 10' roll

71шт.

18

25195

LINK,12.7mm Pitch

roller conn 40-1

2шт.

19

87459942

SPINDLE

chain tensioner

2шт.

20

87624897

TENSION SPRING

.102 wire x 28.4 mm id x 25 mm long LH

1шт.

21

87458905

ROLLER

chain tension

2шт.

22

280275

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

2шт.

23

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

24

86050277

NUT,5/16"-18, GB

2шт.

25

87624898

TENSION SPRING

.102 mm wire x 28.4 mm id x 25 mm long RH

1шт.

26

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

2шт.

27

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

28

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

29

87643096

BRACKET

seed motor sensor, Years: -01-AUG-08

2шт.

29

84127522

BRACKET

seed motor sensor, Start Year: 01-AUG-08

2шт.

31

87463000

SENSOR

Assembly, Hydraulic Drive

2шт.

32

492-11008

LOCK WASHER,#8

6шт.

33

86632692

SELF-TAP SCREW,Phillips Drive, Pan HD, #8 - 18 x 1/2"

6шт.

34

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

8шт.

35

87725549

SPACER

bearing

4шт.

36

87557041

SHAFT

hex 22 mm x 348 mm, Start Year: 01-AUG-08

2шт.

36

87640589

SHAFT

hex 22.2 mm x 306 mm, Years: -01-AUG-08

2шт.

37

87725547

SPACER

mech drive

2шт.

38

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

2шт.

39

87462835

SHAFT

hex 22.2 x 1205

1шт.
