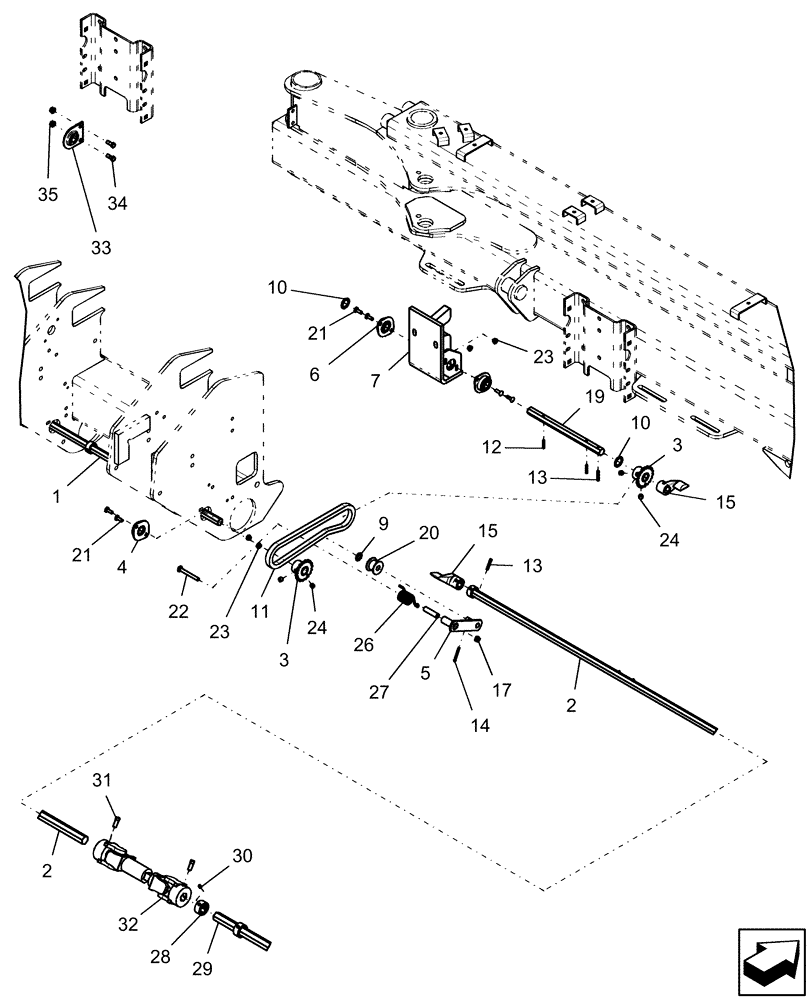

Запчасти Case IH 1250 (75.300.01[01]) - DRIVE - CROSS OVER - 24 ROW (75) - SOIL PREPARATION

1

87462834

SHAFT

hex 22.2 mm x 1500 mm

1шт.

2

87462835

SHAFT

hex 22.2 x 1205

3шт.

3

103681A1

SPROCKET

18 tooth

4шт.

4

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

2шт.

5

87550916

TENSIONER

chain

2шт.

6

87566583

FLANGED BEARING,22.25mm ID

assembly, flangette

4шт.

7

87542383

LATCH

1шт.

9

495-81178

WASHER,21/32" x 1 1/8" x .048"

2шт.

10

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

4шт.

11

1790D

CHAIN (AG)

#40 bulk, 10' roll

2шт.

Use 71 links

1шт.

11

25195

LINK,12.7mm Pitch

roller conn 40-1

2шт.

11

2245

LINK,12.7mm Pitch

connector, offset 40-1

2шт.

12

38-31620

PIN,6.35mm OD x 31.75mm L

4шт.

13

87016635

PIN,6.35mm OD x 38.1mm L

, Years: -01-MAR-10

4шт.

13

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

, Start Year: 01-APR-10

4шт.

13

20356

NUT,1/4"-20, GB

, Start Year: 01-APR-10

4шт.

14

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

15

87539852

COUPLING

cross over drive

4шт.

17

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

19

87557041

SHAFT

hex 22 mm x 348 mm, Start Year: 01-AUG-08

2шт.

19

87640589

SHAFT

hex 22.2 mm x 306 mm, Years: -01-AUG-08

2шт.

20

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

21

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

12шт.

22

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

2шт.

23

145458

SERRATED NUT,5/16"-18 GR 5 ZND

12шт.

24

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

26

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

1шт.

Shown

1шт.

26

87758366

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, LH

1шт.

Not Shown

1шт.

27

87505783

SLEEVE

tensioner pivot 10.33 mm id x 15.88 mm od x 60 mm long

2шт.

28

22224

COLLAR

lock, 7/8" id

16шт.

29

87462837

SHAFT

hex 22.2 mm x 5540 mm

1шт.

30

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

32шт.

31

86542823

SET SCREW,Sq Hd, 3/8"-16 x 7/8", Cup Pt

4шт.

32

87444140

DRIVE SHAFT

telescoping

2шт.

33

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger, Start Serial: Y8S007001

1шт.

On LH side of planter only

1шт.

34

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Start Serial: Y8S007001

2шт.

On LH side of planter only

1шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

, Start Serial: Y8S007001

2шт.

On LH side of planter only

1шт.
