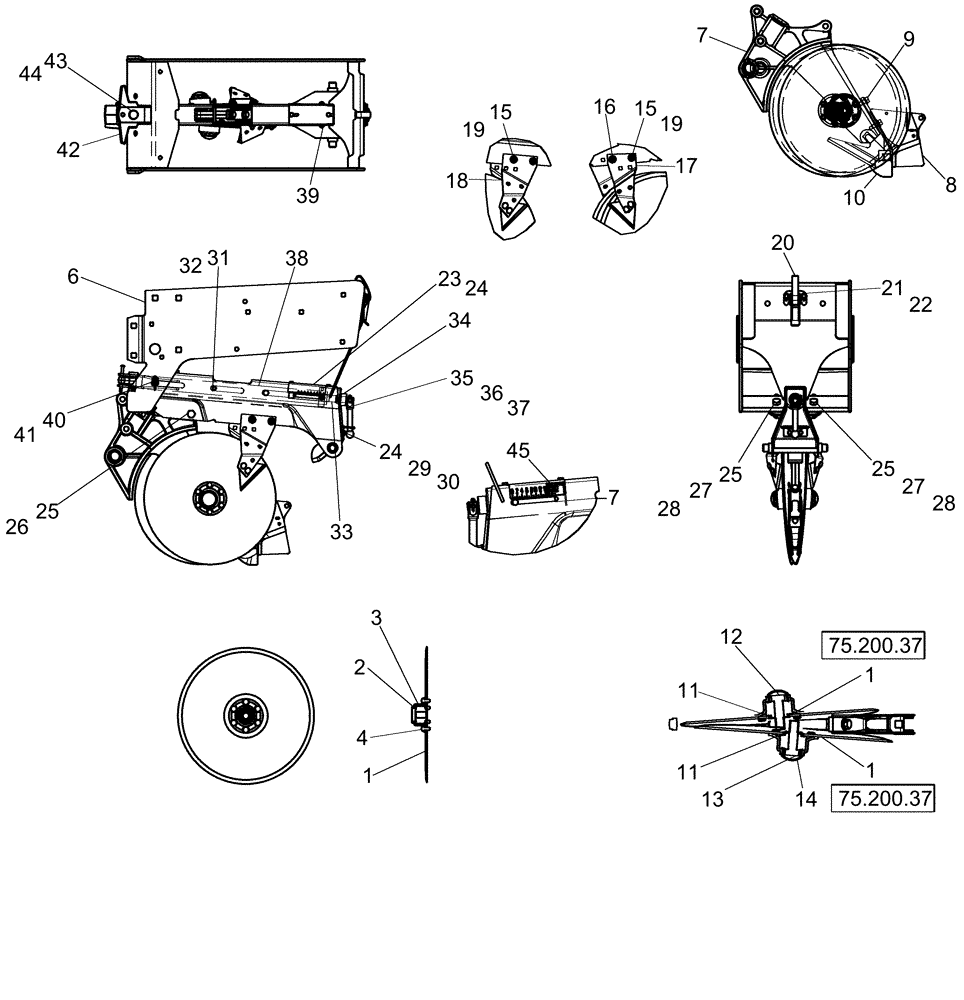

Запчасти Case IH 1250 (75.200.42) - ROW UNIT - LEADING AND TRAILING DISK ASSEMBLY (75) - SOIL PREPARATION

1

87715051

DISC

H.D. OPENER DISK ASSY LEADING, Years: -01-MAR-10

1шт.

1

84261766

DISC

OPENER ASSY, 14" HD LEADING, Start Year: 01-APR-10

1шт.

1

84398745

DISC

OPENER ASSY, 14" HD LEADING, Incl 2 - 5, Start Year: 01-APR-13

1шт.

1

87715053

DISC

DISC 14" trailing heavy, Years: -01-MAR-10

1шт.

1

84261767

DISC

OPENER ASSY, 14" HD TRAILING, Start Year: 01-APR-10

1шт.

1

84398746

DISC

OPENER ASSY, 14" HD TRAILING, Incl 2 - 5, Start Year: 01-APR-13

1шт.

2

1337971C1

DISC

355.6 mm x 3.5 mm 6-hole opener/square, Years: -01-MAR-10

1шт.

2

84259109

PLATE

355.6 mm x 3.5 mm 6-hole opener/square, Start Year: 01-APR-10

1шт.

2

84399105

DISK

355.6 mm x 3.5 mm 6-hole opener/square, Start Year: 01-APR-13

1шт.

3

87715049

BALL BEARING,16.13mm ID x 47mm OD x 29.18mm W

Heavy opener ball

1шт.

3

84397014

BALL BEARING

Disk Opener, Start Year: 01-APR-13

1шт.

4

87715048

FLANGED BEARING,34.95 mm ID x 46.962 mm OD x 35.14 mm

Bearing Retainer, Years: -01-MAR-10

1шт.

4

84261758

FLANGE

Bearing Retainer, Start Year: 01-APR-10

1шт.

4

84397030

FLANGE

Bearing Retainer, Start Year: 01-APR-13

1шт.

5

87668186

RIVET

Knurled 1/4" x 9/16", Years: -01-MAR-10

6шт.

5

80822

RIVET,But Hd, 5/16" x 5/8"

5/16" x 5/8" BTNHD SOLID, Years: -01-MAR-10

6шт.

6

87684860

FRAME

Row Unit Assembly, Start Year: 01-APR-10

1шт.

7

436708A1

SUPPORT

Cast disc LH, Start Year: 01-APR-10

1шт.

7

436709A1

SUPPORT

Cast disc RH, Start Year: 01-APR-10

1шт.

8

84243285

SHOE

Assembly, Seed With In Furrow Fertilizer Slot, Start Year: 01-APR-10

1шт.

9

1263977C1

BOLT

lk 3/8"-16 x 3/4", G8 with chemical lock, Start Year: 01-APR-10

2шт.

10

436702A1

POINT

cast furrow point, complete, Start Year: 01-APR-10

1шт.

11

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened, Start Year: 01-APR-10

3шт.

12

86508732

BOLT,5/8"-11 x 2.391" Cl 8

, Start Year: 01-APR-10

1шт.

13

87698796

BOLT,Hex, 5/8-11 1.75 Full LH Thd Gr 8

LH Hex, 5/8"-11 x 2", G8, Start Year: 01-APR-10

1шт.

14

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing, Start Year: 01-APR-10

2шт.

15

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5, Start Year: 01-APR-10

4шт.

16

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

, Start Year: 01-APR-10

1шт.

17

413687A1

SCRAPER

blade RH, Start Year: 01-APR-10

1шт.

18

413684A1

SCRAPER

blade LH, Start Year: 01-APR-10

1шт.

19

145458

SERRATED NUT,5/16"-18 GR 5 ZND

, Start Year: 01-APR-10

4шт.

20

230311A1

CLAMP

hopper assembly, Start Year: 01-APR-10

1шт.

21

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

, Start Year: 01-APR-10

2шт.

22

523282

SERRATED NUT,Flg, USR, 1/4"-20

, Years: -01-MAR-10

2шт.

23

430873A1

GAUGE

Depth, Start Year: 01-APR-10

1шт.

24

86624112

SELF-TAP SCREW,HWH, #10 - 24 x 1/2"

, Years: -01-MAR-10

4шт.

25

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

, Start Year: 01-APR-10

3шт.

26

86512371

SERRATED NUT,Flg, USR, 1/2"-13

, Years: -01-MAR-10

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

, Start Year: 01-APR-10

2шт.

28

280431

NUT,1/2"-13, G5

2шт.

29

430872A1

GAUGE

clamp plate, Years: -01-MAR-10

1шт.

30

430869A1

SPRING CLIP

, Start Year: 01-APR-10

1шт.

31

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

Pointed, 1/4" x 2 3/4", Years: -01-MAR-10

1шт.

32

86624096

COTTER PIN,Int, 3/16 x .080"

, Start Year: 01-APR-10

1шт.

33

1279684C1

ROD

depth adjusting, Start Year: 01-APR-10

1шт.

34

430871A1

BUSHING,17.5mm ID x 31.8mm OD x 16mm L

spacer, Start Year: 01-APR-10

1шт.

35

430868A1

HANDLE

depth adjustment, Start Year: 01-APR-10

1шт.

36

86624076

HEADED PIN,1/4" x 1 1/4", G5

, Start Year: 01-APR-10

1шт.

37

87394

COTTER PIN,1/8" x 1/2"

, Start Year: 01-APR-10

1шт.

38

432749A1

BAR

assembly, tension, Start Year: 01-APR-10

1шт.

39

1277597C1

STUD

barbed #12 x 3/4" RH, Start Year: 01-APR-10

2шт.

40

86624072

HEADED PIN,12.7mm OD x 69.85mm L

, Start Year: 01-APR-10

1шт.

41

432-1216

COTTER PIN,3/16" x 1"

, Start Year: 01-APR-10

1шт.

42

436712A1

BRACKET

Wobble, Start Year: 01-APR-10

1шт.

43

86624066

CLEVIS PIN,19.05mm OD x 45.62mm L

, Start Year: 01-APR-10

1шт.

44

86523851

COTTER PIN,5/32" x 1 1/4"

, Start Year: 01-APR-10

1шт.

45

84157207

DECAL

Row unit depth limit, Start Year: 01-APR-10

1шт.
