Запчасти Case IH 1250 (75.200.39) - ROW UNIT - RESIDUE MANAGER, ATTACHMENT (75) - SOIL PREPARATION

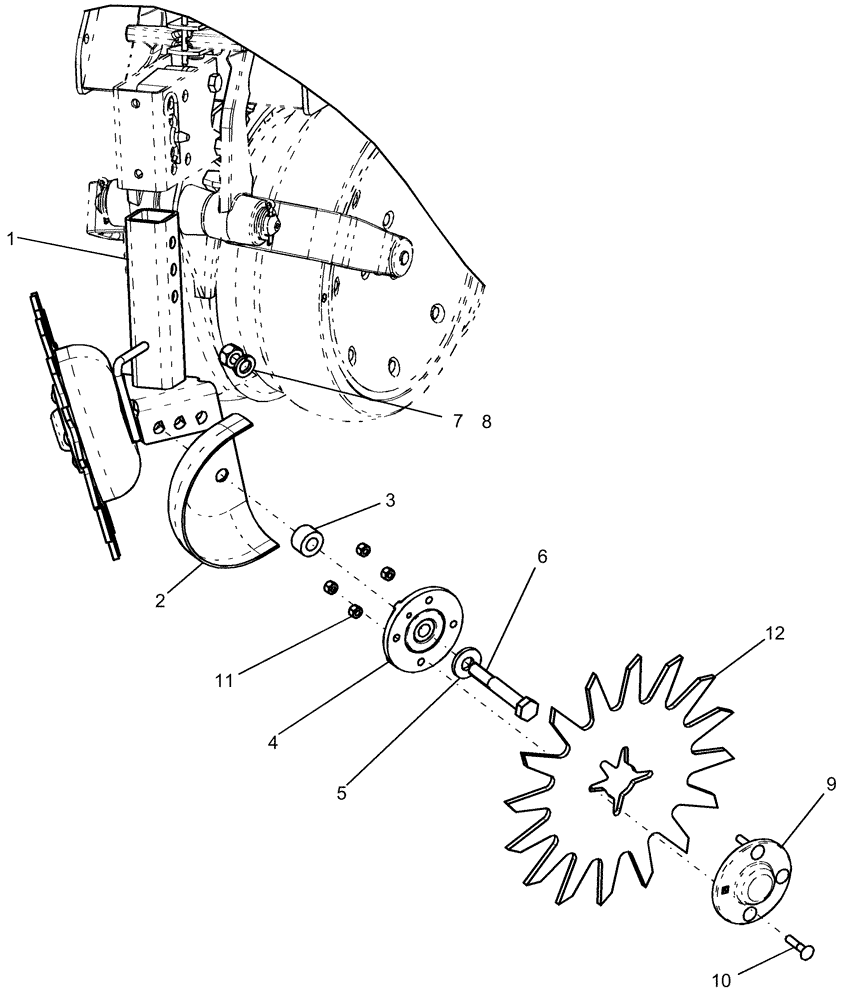

Схема запчастей Case IH 1250 - (75.200.39) - ROW UNIT - RESIDUE MANAGER, ATTACHMENT (75) - SOIL PREPARATION
3
9
2
6
10
1
4
7
11
5
8
12

Артикул

Название

Примечание

Количество

1

87723401

STEM

row unit attachment with handle

1шт.

2

133801A2

BEARING COVER

residue manager bearing

2шт.

3

108139A1

SPACER

3/4"

2шт.

4

108132A1

FLANGED BEARING

and bearing assembly

2шт.

5

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16", No Longer Needed

2шт.

6

135322A1

BOLT,Spcl, Hex Flg, 5/8" - 11 x 4", Gr 8

5/8"-11 x 4", G5, "D" shaped

2шт.

7

12034871

WASHER

5/8"

2шт.

8

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

9

108130A1

HUB CAP

casting

2шт.

10

280623

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

11

87343998

LOCK NUT

5/16"-18, G8

8шт.

12

108131A3

WHEEL,330.2mm OD x 6.35mm Thk

residue manager 13" diameter tine

2шт.

Выбрано товаров: 12
