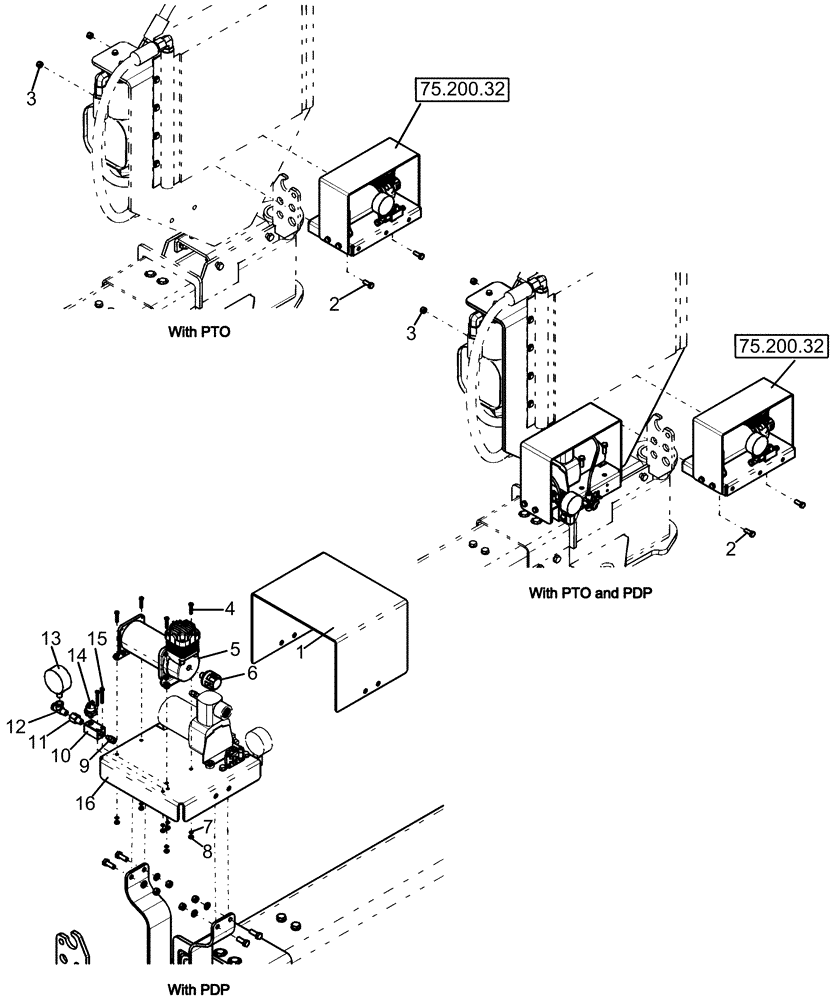

Запчасти Case IH 1250 (75.200.35) - ACCUROW AIR COMPRESSOR OPTIONS (75) - SOIL PREPARATION

1

84169103

SHIELD

compressor cover

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

3

87039402

NUT,3/8"-16, GB

8шт.

4

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

5

84169421

AIR COMPRESSOR

1шт.

5

47454056R

REMAN-COMPRESSOR

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/07-), Reman for New PN 84169421

1шт.

5

47454056C

CORE-COMPRESSOR

Return Number

1шт.

6

1971726C1

BREATHER,1/4" - 18

assembly

1шт.

7

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

6шт.

8

87304

NUT,#10-24

6шт.

9

84256879

FITTING

Straight, 1/4" PTC x 1/8" npt

1шт.

10

84143619

MANIFOLD

air distribution block

1шт.

11

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

12

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1шт.

13

21380

GAUGE

pressure 0-160 psi

1шт.

14

84143639

PRESSURE SWITCH

pneumatic

1шт.

15

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

16

84169518

BASE

Compressor

1шт.
