(75.200.32[01]) - ACCUROW AIR COMPRESSOR MOUNTING, MODEL YEAR 2011

Запчасти Case IH 1250 (75.200.32[01]) - ACCUROW AIR COMPRESSOR MOUNTING, MODEL YEAR 2011 (75) - SOIL PREPARATION

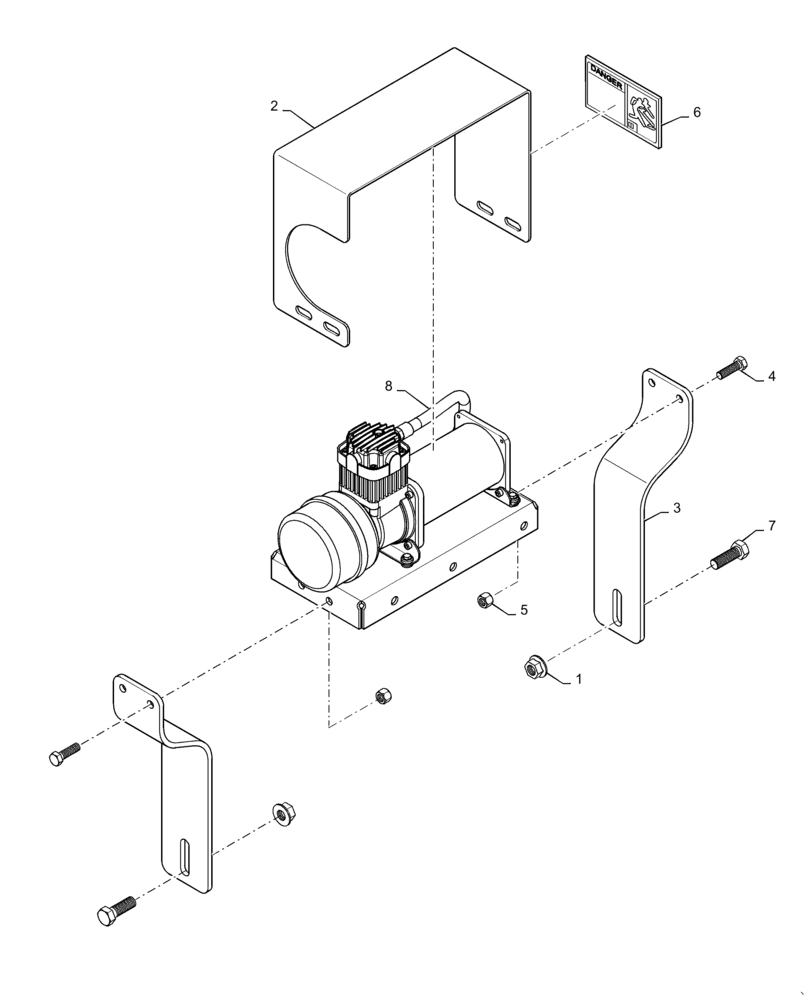

Схема запчастей Case IH 1250 - (75.200.32[01]) - ACCUROW AIR COMPRESSOR MOUNTING, MODEL YEAR 2011 (75) - SOIL PREPARATION
4
8
1
7
2
3
8
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

2

84293045

SHIELD

Compressor

1шт.

3

87693591

BRACKET

Mounting

2шт.

4

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

5

87039402

NUT,3/8"-16, GB

4шт.

6

87697284

DECAL

Safety

1шт.

7

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

8

84166426

AIR HOSE

1/4" With Check Valve

1шт.
