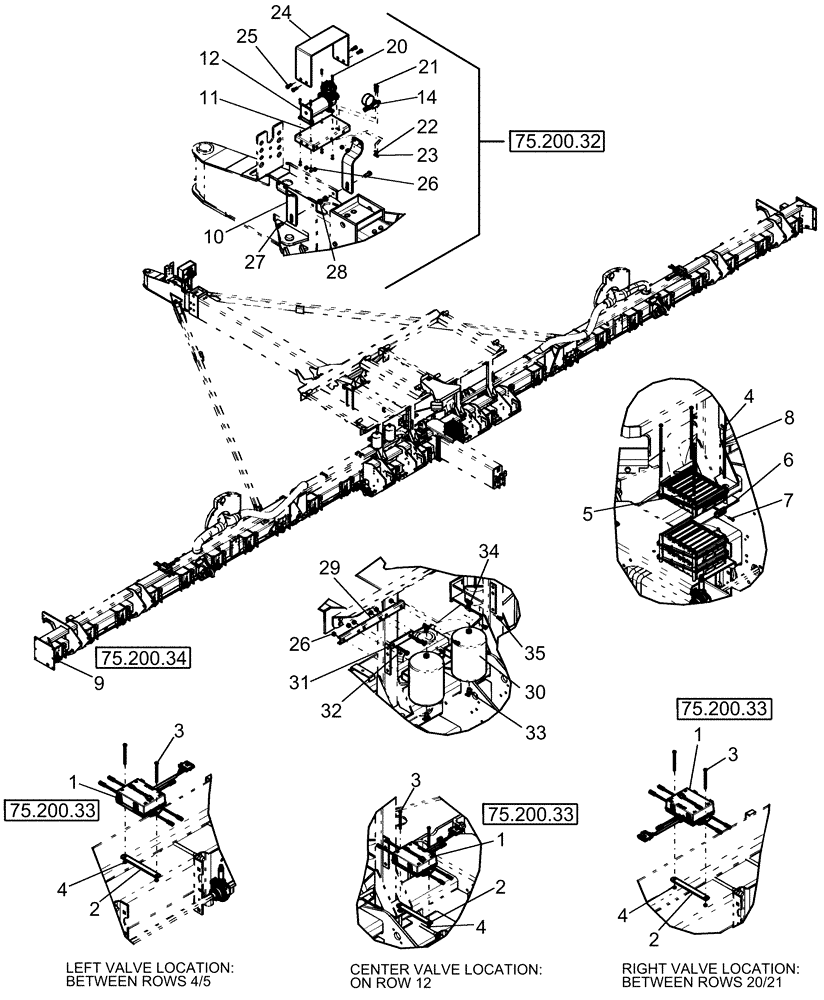

Запчасти Case IH 1250 (75.200.31) - ACCUROW CONTROL 24 ROW (75) - SOIL PREPARATION

1

84170217

VALVE

pneumatic clutch

3шт.

Refer to 75.200.33

1шт.

1

84170217R

REMAN-HYD VALVE

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, pneumatic clutch (1/07-)

3шт.

1

84170217C

CORE-VALVE HYD

Return Number

3шт.

2

84169094

STRAP

retainer

3шт.

3

280657

BOLT,Hex, 1/4" - 20 x 4", Gr 5

6шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

10шт.

5

87588172

MODULE

frame ISO11783

1шт.

5

87588172R

REMAN ELECT CONTROL

1250 Front Fold Trailing Planter Early Riser® Series 24 Row (1/07-)

1шт.

5

87588172C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

425269A1

DUST CAP

30 conductor

1шт.

7

470-11016

SCREW,Pan HD, #10 - 24 x 1"

1шт.

8

84170674

THREADED ROD

1/4-20 x 10

4шт.

9

84133322

CLUTCH

pneumatic seed drive

24шт.

Refer to 75.200.34

1шт.

9

84133322R

REMAN-CLUTCH ASSY

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, Pneumatic seed drive (1/07-)

24шт.

9

84133322C

CORE-CLUTCH ASSEMBLY

Return Number

24шт.

10

87693591

BRACKET

vertical mount

2шт.

11

84169495

BASE

Compressor

1шт.

12

84169421

AIR COMPRESSOR

1шт.

Refer to 75.200.32

1шт.

12

47454056R

REMAN-COMPRESSOR

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/07-), Reman for New PN 84169421

1шт.

12

47454056C

CORE-COMPRESSOR

Return Number

1шт.

14

84143619

MANIFOLD

air distribution block

1шт.

19

84256879

FITTING

Straight, 1/4" PTC x 1/8" npt

1шт.

20

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

21

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

22

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

6шт.

23

87304

NUT,#10-24

6шт.

24

84169093

SHIELD

compressor assembly

1шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

26

87039402

NUT,3/8"-16, GB

10шт.

27

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

28

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

29

84169298

SUPPORT

tank 24R

1шт.

30

84164053

AIR TANK

150 PSI 1.6 gallon

2шт.

31

84169309

RETAINER

tank support

1шт.

32

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

33

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

2шт.

34

84164949

COUPLING

1/4 NPT

2шт.

35

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.
