Запчасти Case IH 1250 (35.116.03) - HYDRAULICS - CYLINDER 87430675, 2" X 8", 12 ROW AND 16 ROW END MARKER (35) - HYDRAULIC SYSTEMS

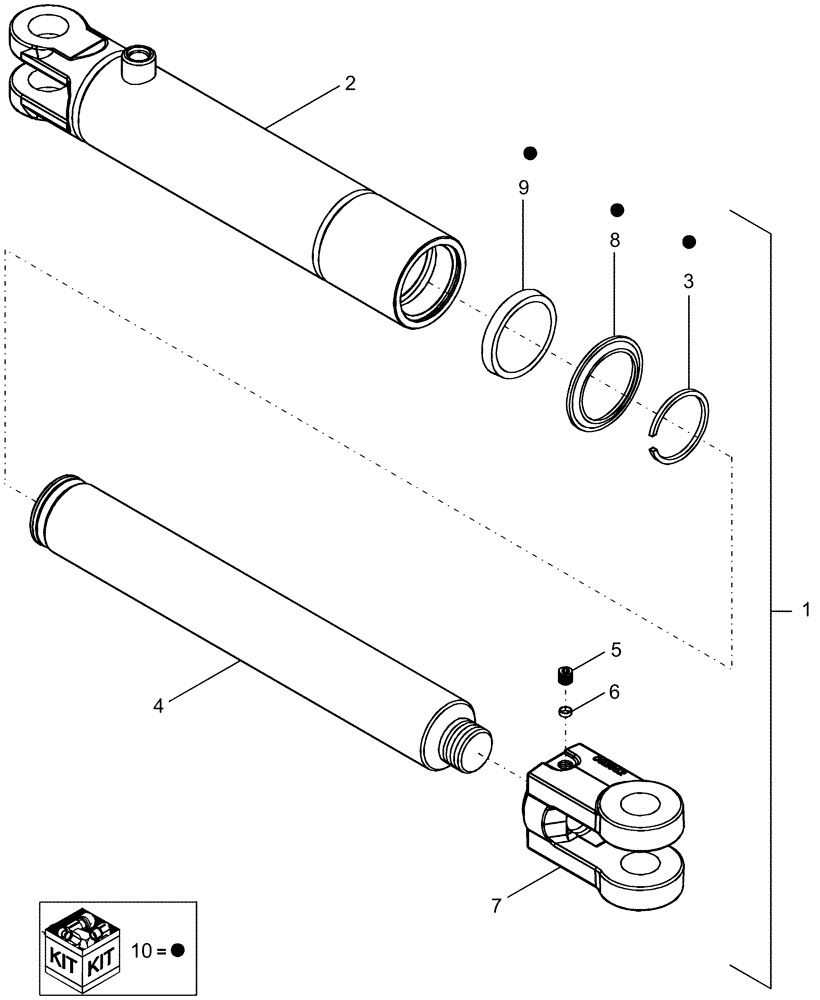

Схема запчастей Case IH 1250 - (35.116.03) - HYDRAULICS - CYLINDER 87430675, 2" X 8", 12 ROW AND 16 ROW END MARKER (35) - HYDRAULIC SYSTEMS
1
5
6
7
9
10
3
2
8
4

Артикул

Название

Примечание

Количество

1

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2" x 8"

1шт.

2

NSS

NOT SOLD SEPARAT

tube, hyd cylinder with clevis

1шт.

3

87409509

RING

retaining, hyd cylinder

1шт.

Included in repair kit 87430676

1шт.

4

87409505

PISTON ROD

2" Nitrosteel

1шт.

5

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

7

87409500

CLEVIS

cylinder rod

1шт.

8

NSS

NOT SOLD SEPARAT

seal, wiper rod

1шт.

Included in repair kit 87430676

1шт.

9

NSS

NOT SOLD SEPARAT

HALLITE rod seal

1шт.

Included in repair kit 87430676

1шт.

10

87430676

SEAL KIT

2" x 8"

1шт.

Выбрано товаров: 13
