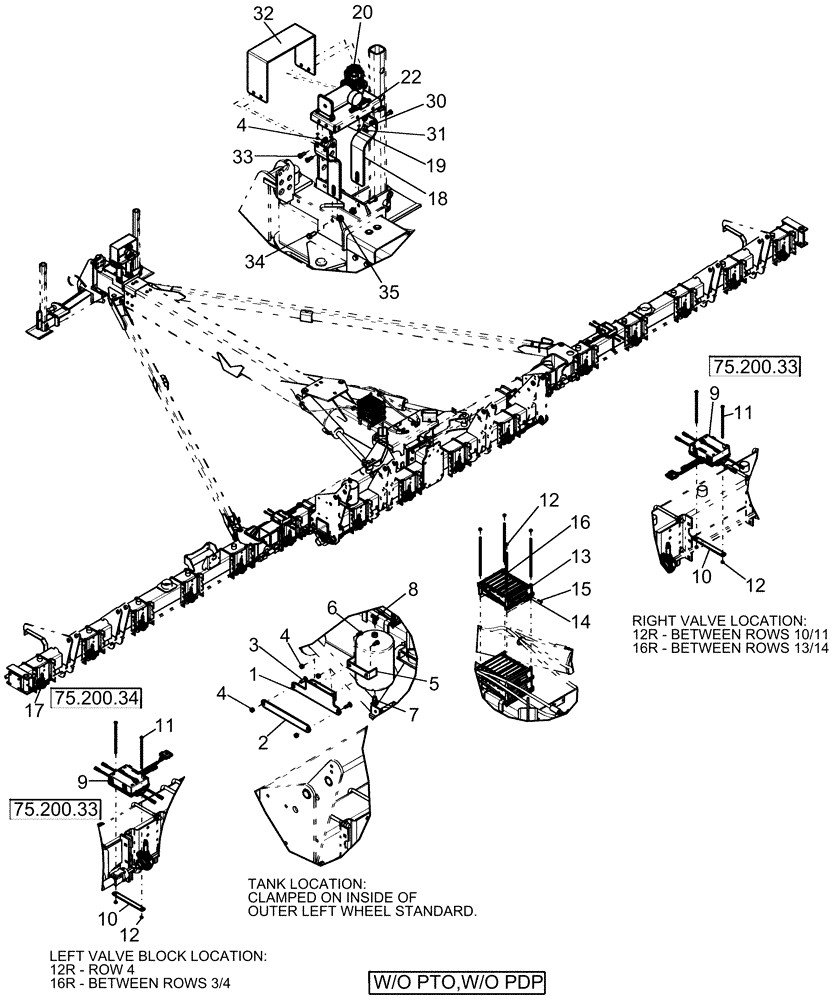

Запчасти Case IH 1250 (75.200.30) - ACCUROW CONTROL 12 &16 ROW (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
84169287
SUPPORT
tank assy tank assy
3шт.
2
84169099
STRAP
tank retaining
3шт.
3
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
6шт.
4
87039402
NUT,3/8"-16, GB
10шт.
5
84164053
AIR TANK
150 PSI 1.6 gallon
1шт.
6
88434
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
8
84164949
COUPLING
1/4 NPT
4шт.
9
84170217
VALVE
pneumatic clutch
2шт.
Refer to 75.200.33
1шт.
9
84170217R
REMAN-HYD VALVE
1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, pneumatic clutch (1/07-)
2шт.
9
84170217C
CORE-VALVE HYD
Return Number
2шт.
10
84169094
STRAP
retainer
2шт.
11
413-4128
BOLT,Hex, 1/4" - 20 x 8", Gr 5
1шт.
12
7770
NUT,Hex, 1/4 - 20, Cl 5
1шт.
13
87588172
MODULE
frame ISO11783
1шт.
87588172R
REMAN ELECT CONTROL
1250 Front Fold Trailing Planter Early Riser® Series 12 & 16 Row (1/07-)
1шт.
87588172C
CORE-ELECTRONIC CONT
Return Number
1шт.
14
425269A1
DUST CAP
30 conductor
1шт.
15
470-11016
SCREW,Pan HD, #10 - 24 x 1"
1шт.
16
436736
SCREW,Slotted Pan Hd, #10-24 x 1"
1шт.
17
84133322
CLUTCH
pneumatic seed drive
16шт.
Refer to 75.200.34
1шт.
17
84133322R
REMAN-CLUTCH ASSY
1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, Pneumatic seed drive (1/07-)
16шт.
17
84133322C
CORE-CLUTCH ASSEMBLY
Return Number
16шт.
18
87693591
BRACKET
vertical mount
1шт.
19
84169495
BASE
Compressor
1шт.
20
84169421
AIR COMPRESSOR
4шт.
20
47454056R
REMAN-COMPRESSOR
1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/07-), Reman for New PN 84169421
4шт.
20
47454056C
CORE-COMPRESSOR
Return Number
4шт.
22
84143619
MANIFOLD
air distribution block
6шт.
30
80684
LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk
2шт.
31
87304
NUT,#10-24
1шт.
32
84169093
SHIELD
compressor assembly
2шт.
33
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
34
87670
BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5
2шт.
35
86512371
SERRATED NUT,Flg, USR, 1/2"-13
4шт.
Выбрано товаров: 37
