(75.200.27) - PNEUMATIC DOWN PRESSURE - HARNESS 84124074

Запчасти Case IH 1250 (75.200.27) - PNEUMATIC DOWN PRESSURE - HARNESS 84124074 (75) - SOIL PREPARATION

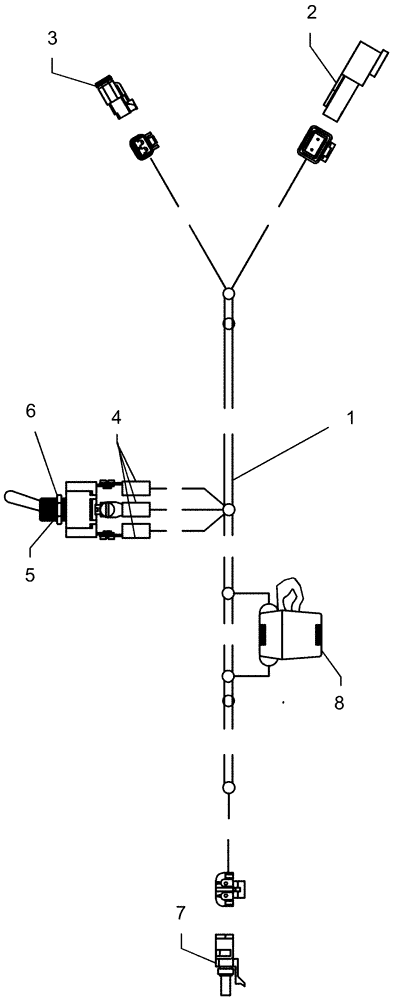

Схема запчастей Case IH 1250 - (75.200.27) - PNEUMATIC DOWN PRESSURE - HARNESS 84124074 (75) - SOIL PREPARATION
1
4
6
2
8
7
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84124074

HARNESS

air compressor power

1шт.

2

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

4

NSS

NOT SOLD SEPARAT

terminal connector, ring

3шт.

5

84124092

TOGGLE SWITCH

spdt momentary

1шт.

6

87739255

RING NUT

15/32"-32, G2

1шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

8

13972

FUSE HOLDER

inline ato 12awg

1шт.

8

87594267

FUSE

auto 20 amp 32V

1шт.
