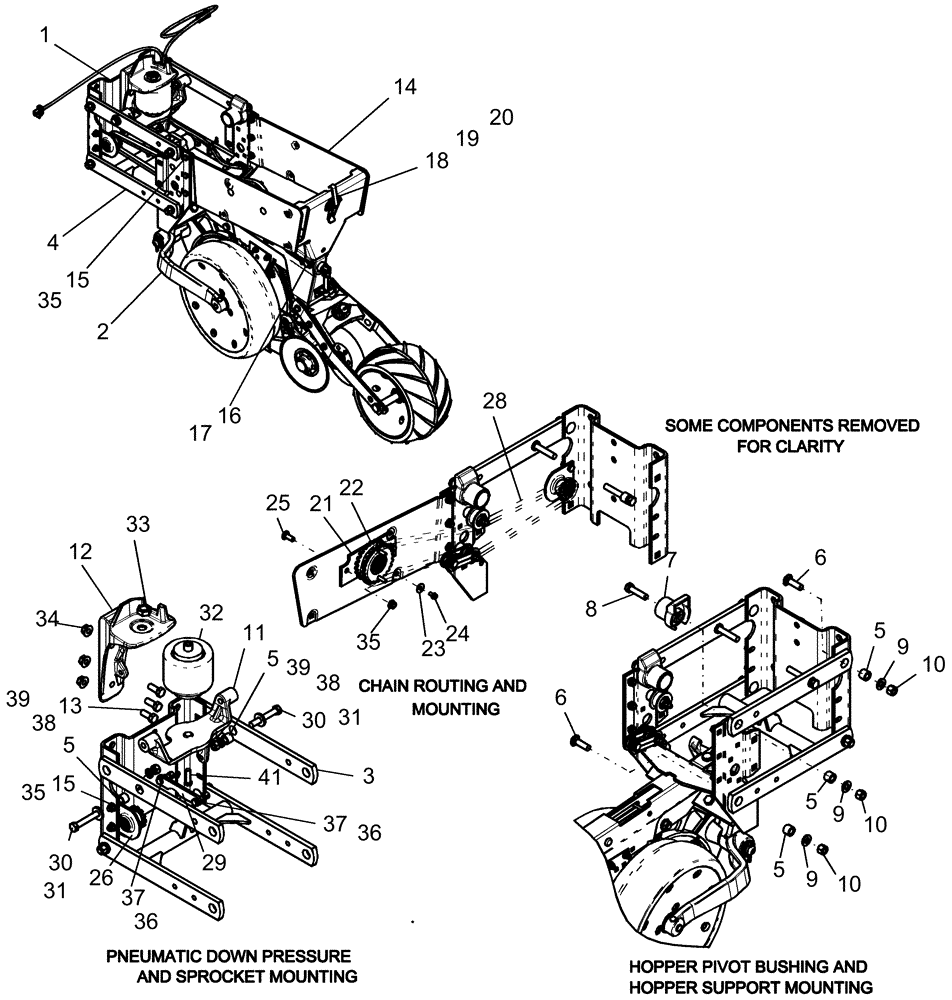

Запчасти Case IH 1250 (75.200.23) - PNEUMATIC DOWN PRESSURE - 14" ROW UNIT WITH LINK - ROUTING (75) - SOIL PREPARATION

1

141728C5

BRACKET

channel head

1шт.

2

REF

INSTRUCTION

LH ROW UNIT (LH D LEAD)

1шт.

3

87739254

BAR

14" upper

2шт.

4

87740251

LINKAGE

14" lower

1шт.

5

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

10шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

6шт.

7

84472130

BUSHING

hopper pivot

2шт.

8

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

9

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

10

86992215

LOCK NUT,1/2"-13, GC

8шт.

11

87739251

BRACKET

lower air spring

1шт.

12

87739252

BRACKET

upper air spring

1шт.

13

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

3шт.

14

197332A3

SUPPORT

assy hopper

1шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

16

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

17

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

18

230311A1

CLAMP

hopper assembly

1шт.

19

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

20

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

21

303068A1

BRACKET

bearing spindle mount assembly

1шт.

22

87407490

SPROCKET

and bearing assembly

1шт.

23

86624140

WASHER,0.28" ID x 0.88" OD x 0.06" Thk

1шт.

24

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

25

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

28

237999A1

CHAIN (AG)

seed meter drive

1шт.

Use 119 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

28

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

28

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

29

87739253

BRACKET

pneumatic link

1шт.

30

280820

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

2шт.

31

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

32

87737172

SPRING

pneumatic 4.6" dia

1шт.

32

84250155

TEE,1/4" AIR x 1/4" AIR x 1/8" - 27 NPT

Branch, Male

1шт.

33

87313

JAM NUT,Jam, 3/4"-16, G2

1шт.

34

86512371

SERRATED NUT,Flg, USR, 1/2"-13

3шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

10шт.

36

87039402

NUT,3/8"-16, GB

4шт.

37

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

39

9803187

NUT,1/2"-13, G8

2шт.

41

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.
