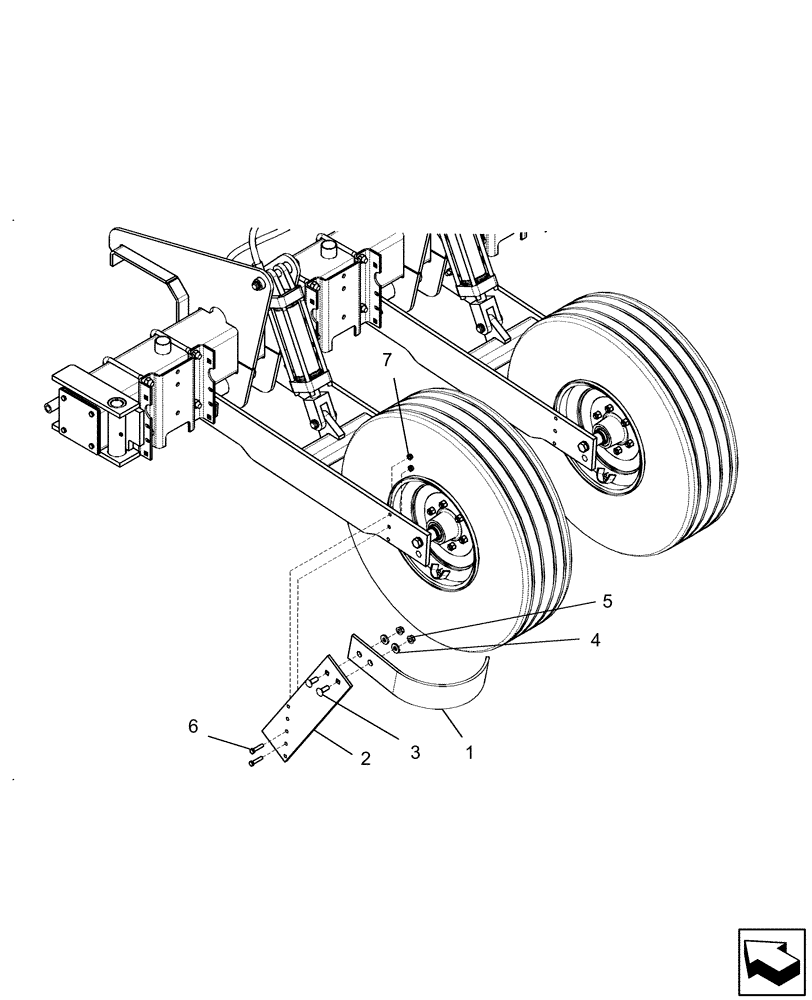

Запчасти Case IH 1250 (75.200.14) - MUDSCRAPERS - 12 AND 16 ROW 10.0 - 15 WING TIRES (75) - SOIL PREPARATION

1

87717339

PLATE

mud scraper

1шт.

2

87717338

PLATE

scraper mount

1шт.

3

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

4

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

5

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

6

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

7

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.
