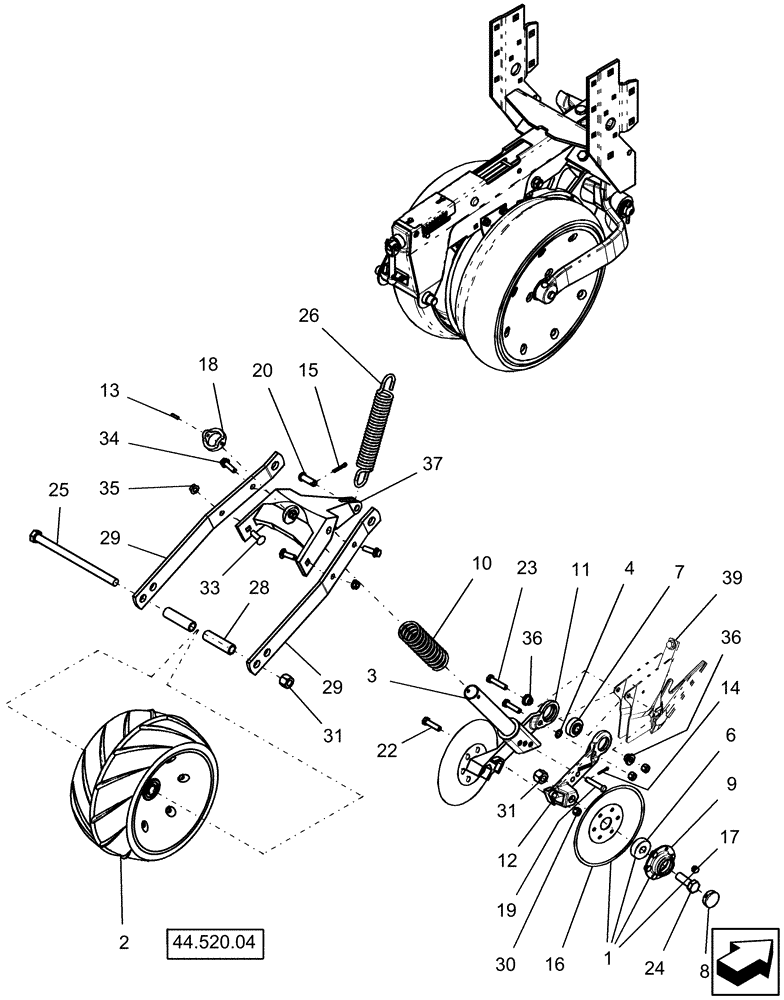

Запчасти Case IH 1250 (75.200.07[02]) - ROW UNIT - PRESS WHEEL & COVERING DISC, WITH RH LEADING DISC OPENER (LH SIDE OF PLANTER AFTER APRIL 2007) (75) - SOIL PREPARATION

1

1277891C91

DISC

assy covering

2шт.

2

87610678

WHEEL,304.8mm OD x 165.1mm W

6.5 x 12 press nylon

1шт.

3

436732A1

GUIDE

tube assembly spring, Model Year 2011 And Prior

1шт.

3

84382932

TUBE

Spring Guide, Model Year 2012

1шт.

4

86624145

WASHER,0.47" ID x 0.75" OD x 0.03" Thk

1шт.

6

87668158

BALL BEARING,16.05mm ID x 45.23mm OD x 18.67mm W

1.78 x .73 x .62 id

4шт.

7

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

#BB203RR2 Torrington

1шт.

8

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

4шт.

9

149170C2

FLANGED BEARING

bearing

2шт.

10

436733A1

COIL SPRING

.207" wire x 1.88" od x 6.3" long

1шт.

10

1264391C1

SPRING

covering

1шт.

Min tillage only

1шт.

11

436720A1

ARM

Pivot, Long

1шт.

12

436721A1

ARM

pivot, short

1шт.

13

87019

COTTER PIN,3/16" x 3/4"

Model Year 2011 And Prior

2шт.

13

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

Model Year 2012

2шт.

13

86629544

NUT,5/16” – 18, GR B

Model Year 2012

2шт.

14

80756

COTTER PIN,1/8" x 3/4"

1шт.

15

394818

COTTER PIN,M5 x 25

3шт.

16

1263938C1

DISC

200.7 mm x 2 mm 6-hole marker/covering

2шт.

17

86624111

RIVET,6.35mm OD x 14.29mm L

24шт.

18

436735A1

COLLAR

Spring Guide, Model Year 2011 And Prior

1шт.

18

84383008

COLLAR

Spring Guide, Model Year 2012

1шт.

19

86624080

HEADED PIN,9.53mm OD x 50.8mm L

1шт.

20

86624070

HEADED PIN,12.7mm OD x 38.1mm L

1шт.

22

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

23

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

24

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

25

413-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

1шт.

26

436715A1

SPRING

E .244" wire x 1.48" od x 9.8" long

1шт.

28

428858A1

SPACER

.875" od x 3.091" long

2шт.

29

86983614

ARM

bar, press wheel

2шт.

30

88902

NUT,3/8"-16

3шт.

31

85700693

NUT,5/8" - 11, Gr C

3шт.

33

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

34

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

2шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

36

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

sintered.38 bore

2шт.

37

436718A1

SUPPORT

Spring Anchor, Model Year 2011 And Prior

1шт.

37

84372576

SUPPORT

Spring Anchor, Model Year 2012

1шт.

39

84243285

SHOE

Assembly, Seed With In Furrow Fertilizer Slot, Years: -01-AUG-09

1шт.

39

84243285

SHOE

Assembly, Seed With In Furrow Fertilizer Slot, Start Year: 01-AUG-09

1шт.
