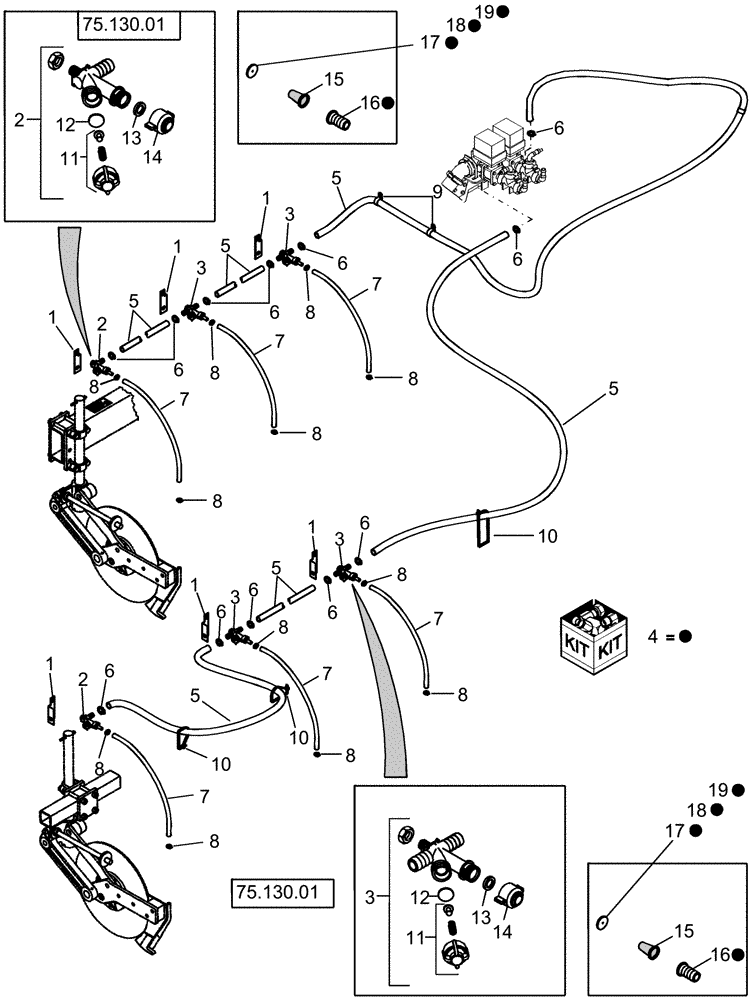

Запчасти Case IH 1250 (75.110.51) - LIQUID FERTILIZER - SUPPLY HOSES WITH TANKS, 12 ROW & 16 ROW (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
241016A1
BRACKET
nozzle mount
12шт.
12 Row
1шт.
1
241016A1
BRACKET
nozzle mount
16шт.
16 Row
1шт.
2
241019A1
NOZZLE
elbow assembly 3/4"
4шт.
Includes Refs. 11 - 14
1шт.
3
241017A1
NOZZLE
tee assembly 3/4"
8шт.
12 Row
1шт.
Includes Refs. 11 - 14
1шт.
3
241017A1
NOZZLE
tee assembly 3/4"
12шт.
16 Row
1шт.
Includes Refs. 11 - 14
1шт.
4
NS
NOT SERVICED
Kit is no longer serviced, orifice
1шт.
5
86993466
HOSE,0.75" ID
Order in Multiples of 100
1шт.
6
9706921
HOSE CLAMP,12.7mm - 35mm
28шт.
12 Row
1шт.
6
9706921
HOSE CLAMP,12.7mm - 35mm
36шт.
16 Row
1шт.
7
134331C2
HOSE
1/2" x 100' clear vinyl bulk roll
1шт.
8
244358
HOSE CLIP,0.44" - 0.78"
24шт.
12 Row
1шт.
8
244358
HOSE CLIP,0.44" - 0.78"
32шт.
16 Row
1шт.
9
515-23317
CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type
8шт.
10
112620A1
CABLE TIE
CABLE STRAP 34"
8шт.
11
86985365
CAP
spring retainer
1шт.
Part of Nozzle Assembly P/N 241019A1 and P/N 241017A1
1шт.
12
86985364
DIAPHRAGM
(Viton) Demco part no. DFDV
1шт.
Part of Nozzle Assembly P/N 241019A1 and P/N 241017A1
1шт.
13
86985362
GASKET
Demco part no DFGE
1шт.
Part of Nozzle Assembly P/N 241019A1 and P/N 241017A1
1шт.
14
86985363
CAP
flood jet (red)
1шт.
Part of Nozzle Assembly P/N 241019A1 and P/N 241017A1
1шт.
15
86985355
SCREEN
100 mesh nylon
1шт.
16
86985352
FITTING
hose shank 1/2" barb
1шт.
Included in kit ref. #4
1шт.
17
86983918
ORIFICE
flow regulator - 40
1шт.
Included in kit ref. #4
1шт.
18
86983919
ORIFICE
flow regulator - 52
1шт.
Included in kit ref. #4
1шт.
19
86983920
ORIFICE
flow regulator - 65
1шт.
Included in kit ref. #4
1шт.
19
86983914
ORIFICE
flow regulator - 29
1шт.
Included in kit ref. #4
1шт.
19
86983916
ORIFICE
flow regulator - 35
1шт.
Included in kit ref. #4
1шт.
19
86983921
ORIFICE
flow regulator - 89
1шт.
Included in kit ref. #4
1шт.
Выбрано товаров: 48
