(35.100.06) - HYDRAULICS - CENTER LIFT WHEELS LIFT-FOLD VALVE MOUNTING - 12 ROW

Запчасти Case IH 1250 (35.100.06) - HYDRAULICS - CENTER LIFT WHEELS LIFT-FOLD VALVE MOUNTING - 12 ROW (35) - HYDRAULIC SYSTEMS

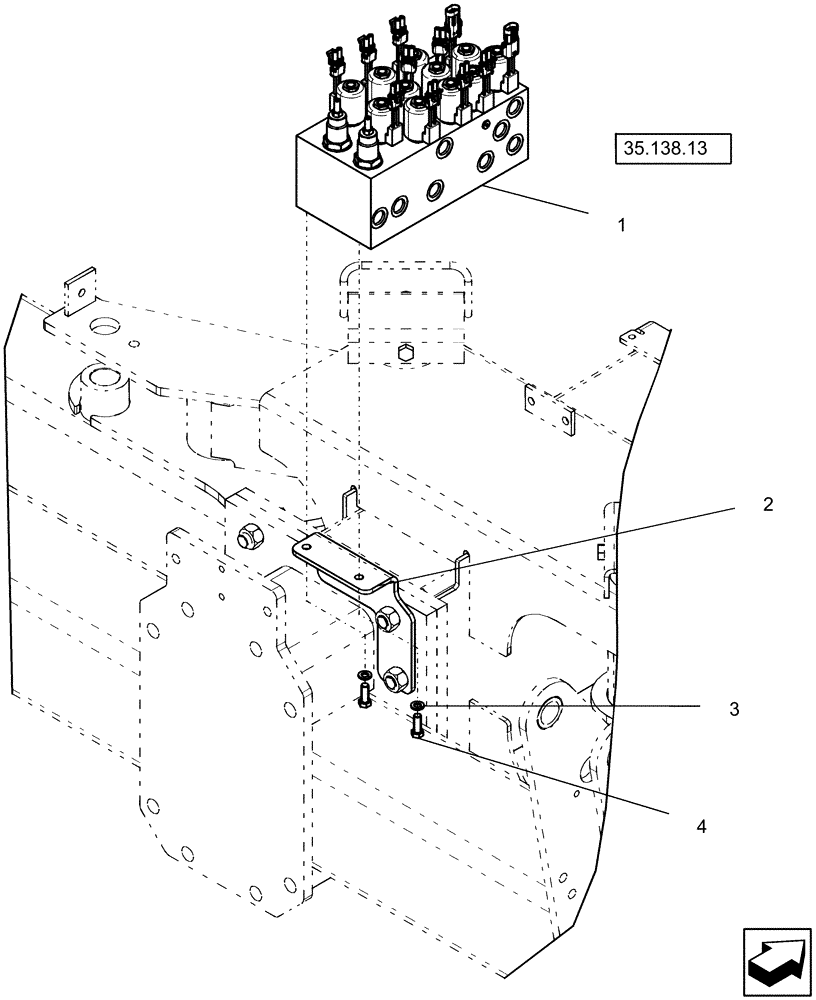

Схема запчастей Case IH 1250 - (35.100.06) - HYDRAULICS - CENTER LIFT WHEELS LIFT-FOLD VALVE MOUNTING - 12 ROW (35) - HYDRAULIC SYSTEMS
2
35.138.13
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87600220

VALVE

assembly, lift and fold, 12 row

1шт.

2

87475176

BRACKET

valve, 12R

1шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
