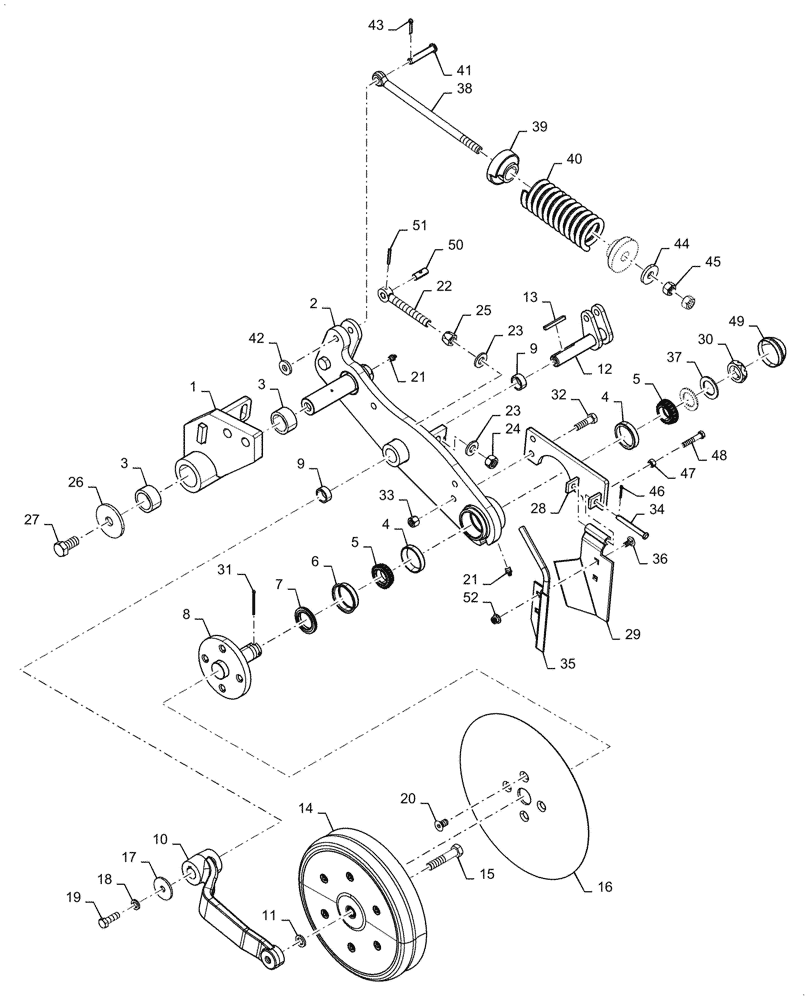

Запчасти Case IH 1250 (75.110.47[04]) - LIQUID FERTILIZER COULTER LEFT SIDE AFTER SERIAL NUMBER YCS0028601 (75) - SOIL PREPARATION

1

87677718

SUPPORT

Coulter

1шт.

2

87677722

ARM

Coulter Left

1шт.

3

87624379

BEARING LINER,38.27 mm ID x 50.88 mm OD x 25.4 mm

2шт.

4

651817R1

BEARING CUP

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

6

472222R1

SLEEVE

Wear

1шт.

7

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

1шт.

8

84224620

SPINDLE

Coulter

1шт.

9

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

2шт.

10

87628253

ARM

Single Disk

1шт.

11

87023159

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

1шт.

12

87584022

PIN

Gauge Wheel

1шт.

13

87599601

KEY

1шт.

14

87628246

WHEEL

2 x 13 Offset

1шт.

15

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

16

87584040

BLADE

Coulter

1шт.

17

86625245

WASHER,0.52" ID x 2" OD x 0.16" Thk

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

19

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

20

87010473

HEX SOC SCREW,FLAT, 1/2" - 13 x 7/8"

4шт.

21

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

22

87584046

EYEBOLT

1шт.

23

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

24

86625068

NUT,5/8"-11, G8

1шт.

25

85700693

NUT,5/8" - 11, Gr C

1шт.

26

86637951

WASHER,0.81" ID x 3" OD x 0.24" Thk

1шт.

27

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

28

87652326

BRACKET

Scraper Pivot

1шт.

29

84423071

SCRAPER BLADE

Left

1шт.

30

519250R1

SLOTTED NUT

1-1/4"

1шт.

31

86523955

COTTER PIN,1/8" x 2"

1шт.

32

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

33

87333862

NUT

2шт.

34

86632570

HEADED PIN

1шт.

35

84421411

BRACKET

Left Painted

1шт.

36

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

37

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

38

84194013

EYEBOLT

1шт.

39

20090050

HOLDER

2шт.

40

24143880

COMPRESSION SPRING

1шт.

41

86624072

HEADED PIN,12.7mm OD x 69.85mm L

1шт.

42

84158486

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

1шт.

43

87397

COTTER PIN,3/16" OD x 1" L

1шт.

44

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

45

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

46

80755

COTTER PIN,1/8" OD x 1" L

1шт.

47

9628503

NUT,3/8"-16, G5

1шт.

48

80280644

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

49

87505175

DUST CAP

1шт.

50

87584047

PIN

1шт.

51

87742350

ROLL PIN

1шт.

52

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.
