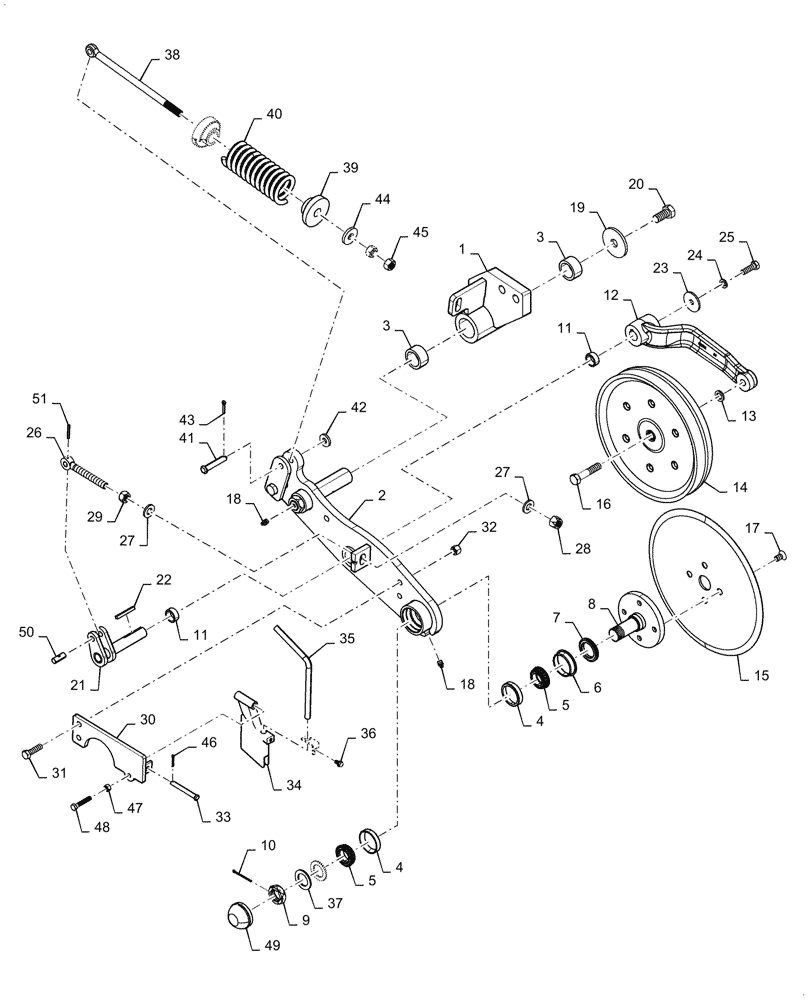

Запчасти Case IH 1250 (75.110.47[01]) - LIQUID FERTILIZER COULTER RIGHT SIDE BEFORE SERIAL NUMBER YCS0028601 (75) - SOIL PREPARATION

1

87677728

SUPPORT

Coulter Right Painted

1шт.

2

87677730

ARM

Coulter Right

1шт.

3

87624379

BEARING LINER,38.27 mm ID x 50.88 mm OD x 25.4 mm

2шт.

4

651817R1

BEARING CUP

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

6

472222R1

SLEEVE

Wear

1шт.

7

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

1шт.

8

84224620

SPINDLE

Fertilizer Coulter

1шт.

9

519250R1

SLOTTED NUT

1-1/4"

1шт.

10

432-832

COTTER PIN,1/8" x 2"

1шт.

11

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

2шт.

12

87628254

ARM

Opener

1шт.

13

496-81004

WASHER,41/64" x 1.047" x .134", HDN

1шт.

14

87628246

WHEEL

2x13 Offset

1шт.

15

87584040

BLADE

Coulter

1шт.

16

113-2673

BOLT,Hex, 5/8" - 11 x 3", Gr 5, LH Thd

1шт.

17

87010473

HEX SOC SCREW,FLAT, 1/2" - 13 x 7/8"

4шт.

18

219-4

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

19

495-81238

WASHER,13/16" x 3" x .238", HDN

1шт.

20

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

21

87584022

PIN

Gauge Wheel

1шт.

22

87599601

KEY

1шт.

23

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

1шт.

24

492-11050

LOCK WASHER,1/2"

1шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

26

87584046

EYEBOLT

Threaded

1шт.

27

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

28

85700693

NUT,5/8" - 11, Gr C

1шт.

29

429-1010

NUT,5/8"-11, G8

1шт.

30

87652325

BRACKET

Scraper Pivot Right

1шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

32

231-4248

NUT,1/2"-13, GB

2шт.

33

439-5652

HEADED PIN

1шт.

34

87584044

SCRAPER

Single Disk Right

1шт.

35

84193864

TUBE,70 mm L

1шт.

36

409-758

BOLT,Hex Flg, 5/16" - 18 x 1/2", Spcl

1шт.

37

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

38

84194013

EYEBOLT

1шт.

39

20090050

HOLDER

2шт.

40

24143880

COMPRESSION SPRING

1шт.

41

439-5844

HEADED PIN,1/2" x 2 3/4", G5

1шт.

42

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

1шт.

43

432-1216

COTTER PIN,3/16" x 1"

1шт.

44

495-81028

WASHER,21/32" x 1 1/2" x .240"

1шт.

45

425-1010

NUT,5/8"-11, G5

2шт.

46

432-816

COTTER PIN,1/8" x 1"

1шт.

47

9628503

NUT,3/8"-16, G5

1шт.

48

80280644

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

49

87505175

DUST CAP

1шт.

50

87584047

PIN

1шт.

51

87742350

ROLL PIN

1шт.
