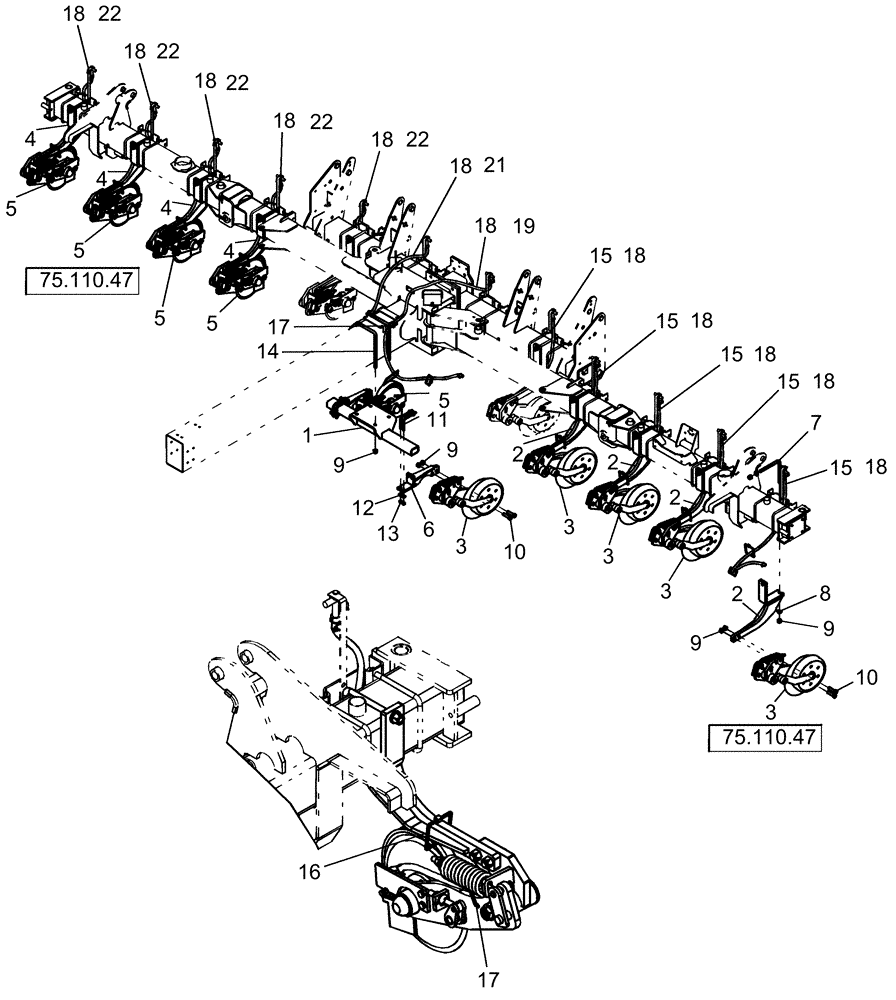

Запчасти Case IH 1250 (75.110.46) - LIQUID FERTILIZER COULTER LAYOUT - 12 ROW (75) - SOIL PREPARATION

1

87652896

MOUNT

coulter

1шт.

2

84249368

MOUNT

fertilizer coulter LH

4шт.

3

NSS

NOT SOLD SEPARAT

6шт.

See Figure 75.110.47

1шт.

4

84249366

MOUNT

fertilizer coulter RH

4шт.

5

NSS

NOT SOLD SEPARAT

6шт.

See Figure 75.110.47

1шт.

6

87687571

MOUNT

fertilizer coulter

4шт.

7

87670751

BOLT

L 3/4"-10 242 mm x 242 mm

8шт.

8

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

16шт.

9

9626598

NUT,3/4"-10, GB

40шт.

10

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

20шт.

11

87600201

BOLT

L 1/2"-13 x 140 mm x 110 mm

4шт.

12

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

8шт.

13

9636698

NUT,1/2"-13, GB

8шт.

14

87671598

BOLT

us 3/4"-10 8 1/8" wide x 13 3/4" deep

2шт.

15

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

5шт.

Cut to 1612 mm long

1шт.

16

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

8шт.

17

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

12шт.

18

244358

HOSE CLIP,0.44" - 0.78"

22шт.

19

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

Cut to 2438.4 mm long

1шт.

20

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

21

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

Cut to 2438.4 mm long

1шт.

22

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

5шт.

Cut to 1612 mm long

1шт.
