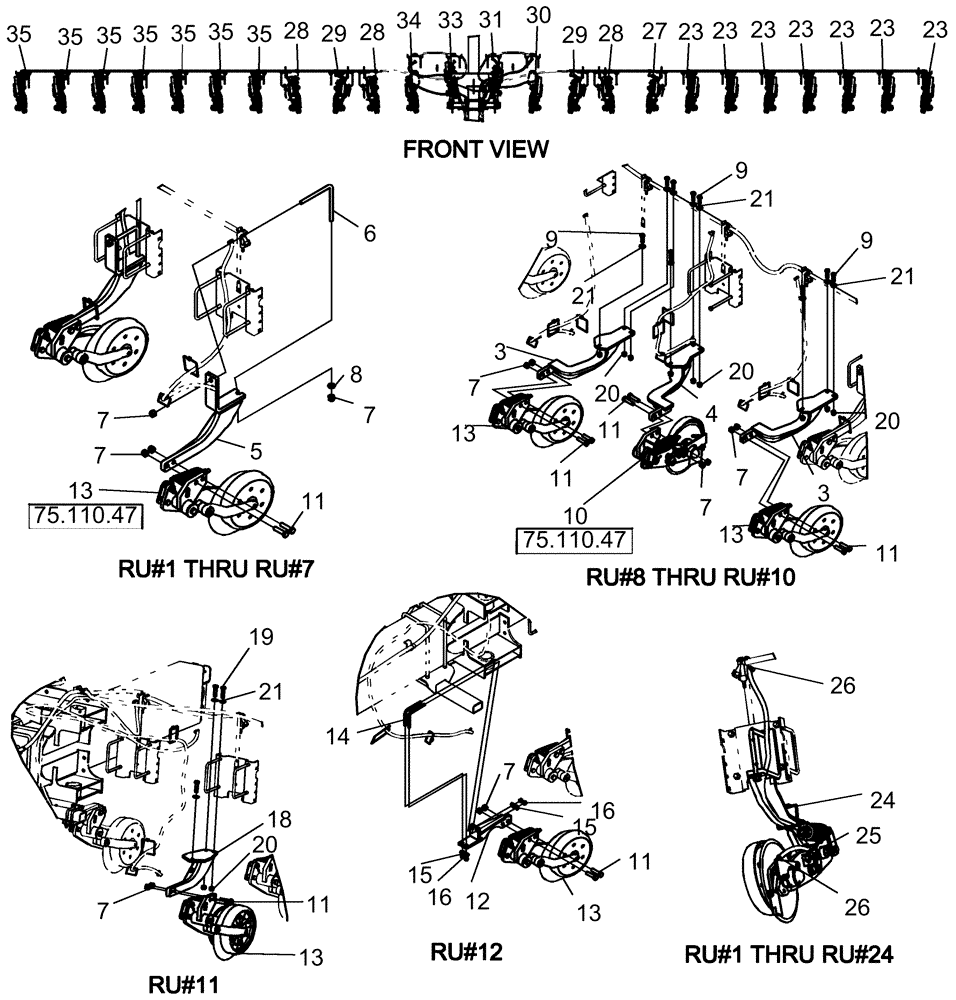

Запчасти Case IH 1250 (75.110.44[01]) - LIQUID FERTILIZER COULTER LAYOUT - 24 ROW (75) - SOIL PREPARATION

1

87677705

MOUNT

coulter

1шт.

2

84249366

MOUNT

fertilizer coulter RH

7шт.

3

84250008

MOUNT

Fert coulter LH

3шт.

4

84250006

MOUNT

Fert coulter RH

3шт.

5

84249368

MOUNT

fertilizer coulter LH

7шт.

6

87670751

BOLT

L 3/4"-10 242 mm x 242 mm

14шт.

7

9626598

NUT,3/4"-10, GB

80шт.

8

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

14шт.

9

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

18шт.

10

NSS

NOT SOLD SEPARAT

12шт.

See Figure 75.110.47

1шт.

11

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

48шт.

12

87687571

MOUNT

fertilizer coulter

2шт.

13

NSS

NOT SOLD SEPARAT

12шт.

See Figure 75.110.47

1шт.

14

87600201

BOLT

L 1/2"-13 x 140 mm x 110 mm

4шт.

15

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

8шт.

16

9636698

NUT,1/2"-13, GB

8шт.

17

87652327

MOUNT

fertilizer coulter RH

1шт.

18

87652328

MOUNT

fertilizer coulter LH

1шт.

19

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

6шт.

20

19670

NUT,5/8"-11, GB

24шт.

21

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

24шт.

22

87503060

U-BOLT

us 3/4"-10 x 8.1 wide x 17.75 deep

2шт.

23

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

7шт.

24

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

30шт.

25

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

26шт.

26

244358

HOSE CLIP,0.44" - 0.78"

48шт.

27

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

Cut to 1750 mm long

1шт.

28

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

3шт.

Cut to 1750 mm long

1шт.

29

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

2шт.

Cut to 1750 mm long

1шт.

30

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

Cut to 4550 mm long

1шт.

31

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

Cut to 3000 mm long

1шт.

32

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

33

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

Cut to 3000 mm long

1шт.

34

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

Cut to 4550 mm long

1шт.

35

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

7шт.

Cut to 1612 mm long

1шт.
