(35.100.05) - HYDRAULICS - CENTER LIFT WHEELS LIFT-FOLD VALVE MOUNTING - 16 ROW ASN Y9S007001

Запчасти Case IH 1250 (35.100.05) - HYDRAULICS - CENTER LIFT WHEELS LIFT-FOLD VALVE MOUNTING - 16 ROW ASN Y9S007001 (35) - HYDRAULIC SYSTEMS

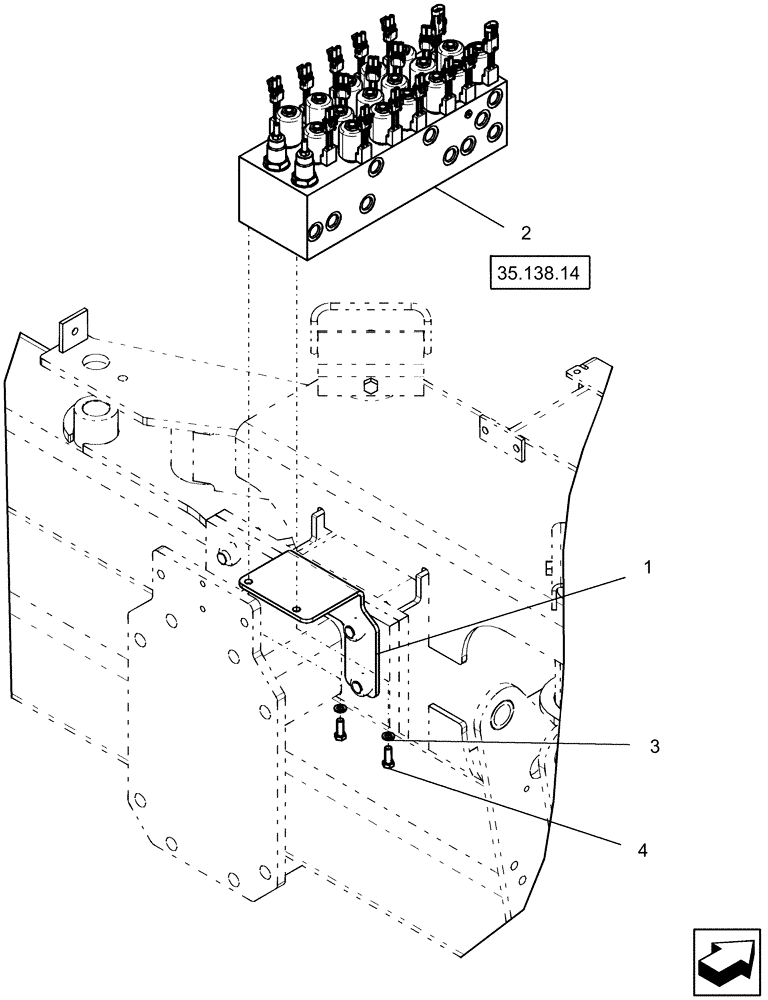

Схема запчастей Case IH 1250 - (35.100.05) - HYDRAULICS - CENTER LIFT WHEELS LIFT-FOLD VALVE MOUNTING - 16 ROW ASN Y9S007001 (35) - HYDRAULIC SYSTEMS
1
4
3
35.138.14
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87479172

BRACKET

lift valve, 16R

1шт.

2

87682612

VALVE

assembly, lift and fold

1шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

Выбрано товаров: 4
