(75.110.42) - LIQUID FERTILIZER - OVERFLOW - 24 ROW, 600 GALLON TANK

Запчасти Case IH 1250 (75.110.42) - LIQUID FERTILIZER - OVERFLOW - 24 ROW, 600 GALLON TANK (75) - SOIL PREPARATION

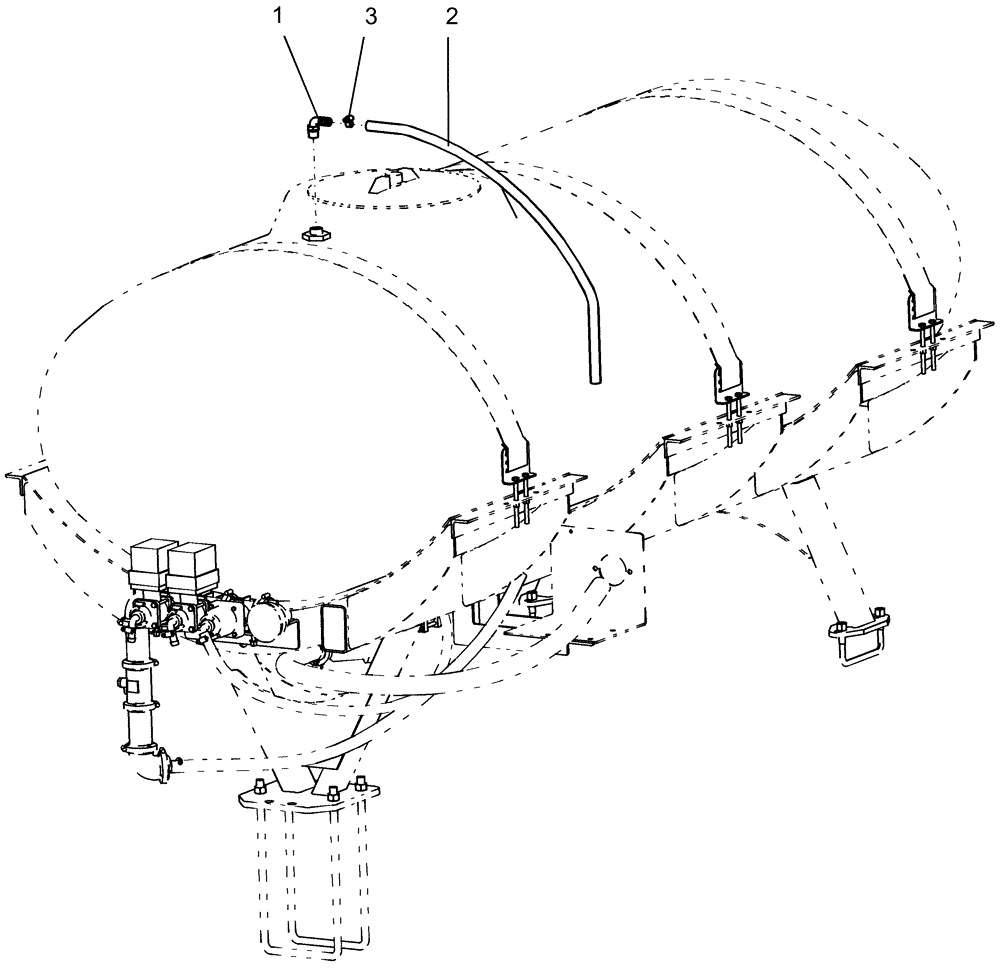

Схема запчастей Case IH 1250 - (75.110.42) - LIQUID FERTILIZER - OVERFLOW - 24 ROW, 600 GALLON TANK (75) - SOIL PREPARATION
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

328179A1

ELBOW

fitting poly 90° 3/4" mpt 3/4" mpt

1шт.

2

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 2500 mm

1шт.

3

9706921

HOSE CLAMP,12.7mm - 35mm

1шт.
