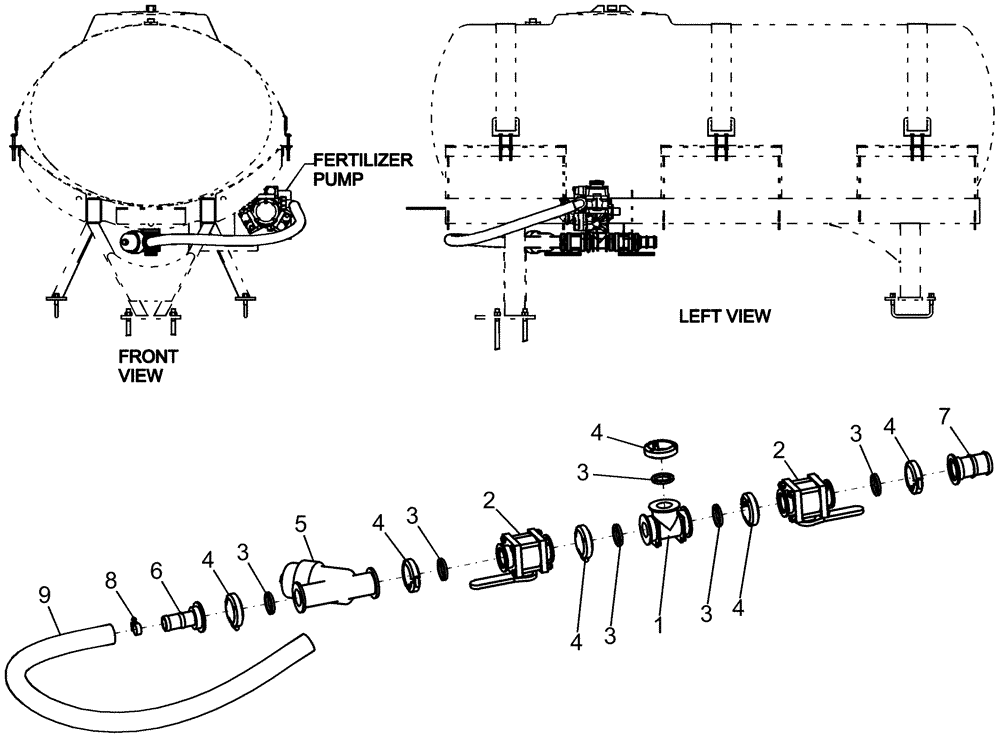

Запчасти Case IH 1250 (75.110.38) - LIQUID FERTILIZER - TANK VALVES - 24 ROW, 600 GALLON TANK (75) - SOIL PREPARATION

1

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

2

405800A1

VALVE,2" Flange Ball Valve

ball 2" flange bolted

2шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

6шт.

4

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

6шт.

5

405798A1

STRAINER ELEMENT,AAH

fitting poly y 2" line 80 mesh

1шт.

5

87413267

GASKET,2" EPDM Gasket

strainer

1шт.

5

87413266

SCREEN,80 Mesh Screen

Strainer 80 Mesh, Banjo Part# LS280, Blue

1шт.

6

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1 1/2" hb Poly, Banjo

1шт.

7

405780A1

FITTING,2" Flange x 2" Hose Barb

poly str 2 flng x 2 hb

1шт.

8

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

9

1264065C1

HOSE

pvc 1 1/2" id x 1 3/4" od x 1'

1шт.

Cut to 1439 mm long

1шт.
